Flatbed farm trailer manufacturer product reference
Farm Trailers & TransportAgricultural implement

Flatbed farm trailer

A tractor-towed flatbed utility trailer with a loading ramp for transporting suitable loads around farm yards, workshops and storage areas.

Product family
Farm Trailers & Transport
Models
1 configurations
Request a QuoteChat on WhatsApp
Product & applications

About the flatbed farm trailer

A tractor-towed flatbed utility trailer with a loading ramp for transporting suitable loads around farm yards, workshops and storage areas.

Features & benefits

01

Removable pin hitch

A removable pin connects the trailer drawbar to the tractor.

02

Four-wheel steering arrangement

Linked wheel assemblies assist turning while the trailer is towed.

03

Flat deck and loading ramp

The corresponding product photograph shows a deck and ramp for moving suitable loads onto the trailer.

Typical applications

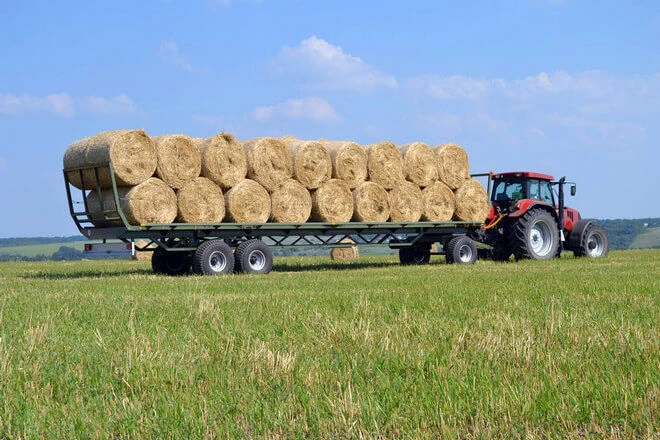

Bale transport on a tractor-towed flatbed trailer
Bale transport on a tractor-towed flatbed trailer
  • Farm and yard transportCarry suitable secured loads around agricultural working areas.
  • Warehouse and workshop transferMove suitable materials between accessible storage and workshop locations. Load dimensions and mass must fit the deck and the rated towing arrangement.
Technical specifications

Models, dimensions and working requirements

Model

JY-7CT-5

Capacity(Ton)

5

No. of wheels(unit)

4

Length(mm)

4600

Width(mm)

2150

Weight(kg)

1200

Installation requirements

Confirm the trailer suits your tractor and load

Before ordering, send the machine identification and the connection, power and working information relevant to this product.

  1. Tractor towing limits

    Check tractor towing limits against trailer unladen mass, load and intended terrain.

  2. Drawbar and pin connection

    Match the actual towing pin, hitch height and turning clearance.

  3. Deck, ramp and load restraint

    Confirm load dimensions, distribution, ramp rating and restraint arrangements; the specifications do not provide a separate ramp rating.

  4. Brakes and transport conditions

    Confirm the actual braking arrangement and operating route. The published specification does not establish road-use approval.

Product questions

Flatbed farm trailer questions

Does the payload value establish suitability for road use?

No. The table specifies a load capacity but does not establish braking, lighting, registration or destination-specific road approval.

What loading, ramp and load-restraint information is needed?

Confirm load dimensions, distribution, ramp rating and restraint arrangements; the specifications do not provide a separate ramp rating.

What should I check before installation?

Check tractor towing limits against trailer unladen mass, load and intended terrain. Match the actual towing pin, hitch height and turning clearance.
