Compact crawler excavators for digging, trenching and site preparation. Compare three machine classes and select the configuration for your access space and working depth.

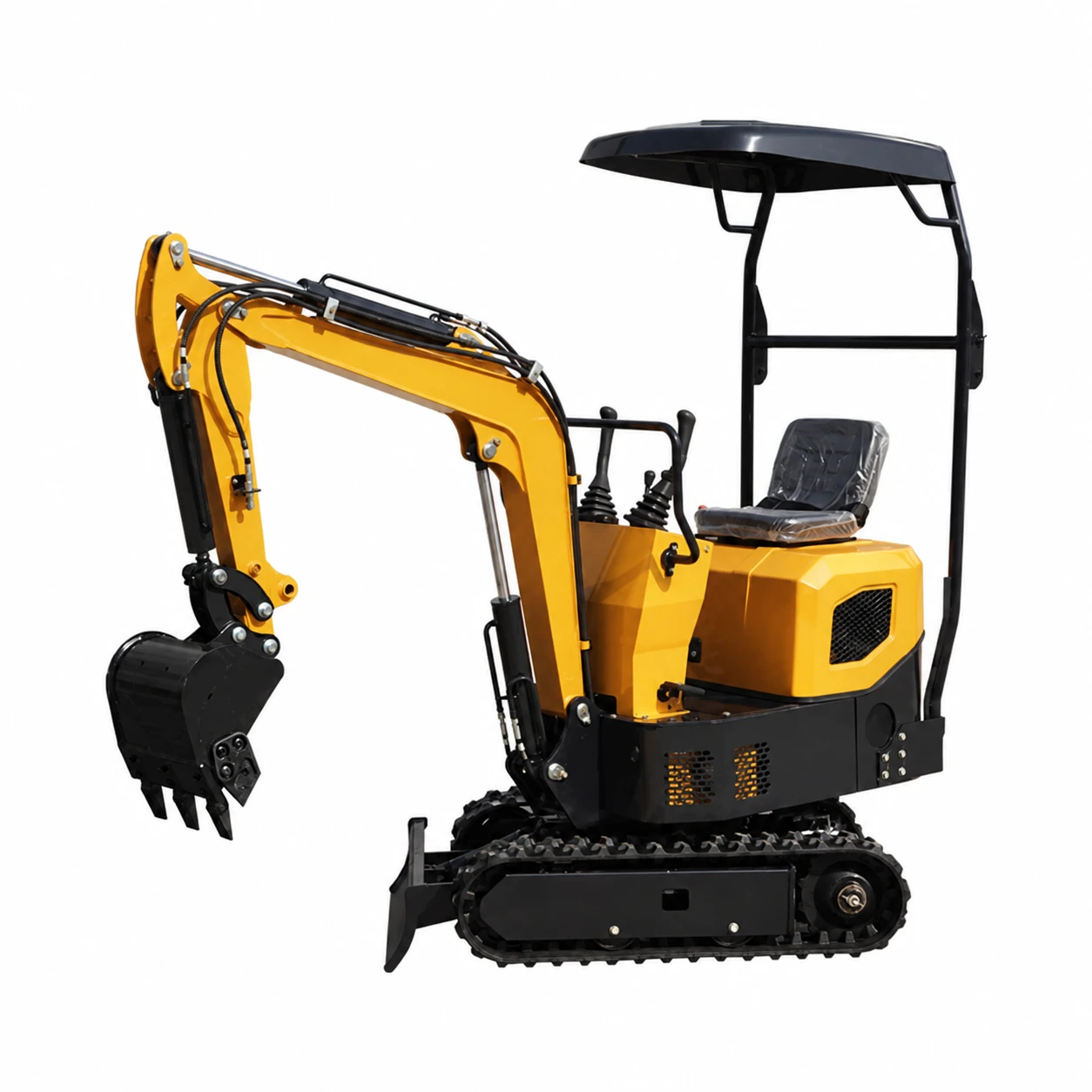

Choose your modelA 1-ton crawler excavator for garden excavation, nursery work and narrow soil trenches, combining an 880 mm overall width with pilot joystick controls and a 1,715 mm digging depth.
The 1,000 kg crawler configuration brings a digging bucket and dozer blade into restricted work areas. Its 380 mm bucket width supports narrow excavation, while a 3,065 mm digging radius gives a clear reference for planning trench reach and spoil placement.
A KOOP KD192F diesel engine drives the working hydraulics. Pilot joysticks control digging movements, and a hydraulic-oil radiator serves the circuit. Rubber tracks, an open canopy and a cast-iron counterweight complete the chassis and operator layout. Additional buckets, a breaker or an auger extend the working package when fitted with matching connections.
An 880 mm overall width suits narrow access routes. Allow additional clearance for turning and movement of the boom and bucket.
The depth and 3,065 mm radius define the excavation envelope for local soil trenching and planting work.
Hydraulic pilot controls operate the boom, arm and bucket from the operator station.
A hydraulic-oil radiator provides a dedicated cooling provision for the working circuit.
Rubber tracks form the standard undercarriage configuration. Steel tracks are an alternative for different working surfaces.
The open operator station provides access to the seat and controls, with a cast-iron rear counterweight.
The bucket handles excavation; the blade supports local backfilling and ground preparation.
A breaker line and optional couplers, augers and gripping tools allow task-specific equipment choices.
Compare the actual operating weight, dimensions and digging range. The 1.5-ton class model lists an operating weight of 1,400 kg.
| Specification | |||
|---|---|---|---|
| Operating weight | 1,000 kg | 1,400 kg | 2,000 kg |
| Engine | KOOP KD192F | Kubota D722 | Kubota D1105 |
| Engine power | 7 kW at 3,000 rpm | 10.4 kW at 2,500 rpm | 14.2 kW at 2,000 rpm (maximum) |
| Digging depth | 1,715 mm | 2,017 mm | 2,400 mm |
| Digging radius | 3,065 mm | 3,529 mm | 4,040 mm |
| Length × width × height | 2,840 × 880 × 2,220 mm | 3,329 × 990 × 2,267 mm | 3,555 × 990 / 1,300 × 2,290 mm |
Reference configuration. Equipment, included attachments and supply specifications will be defined in the quotation.
| Operating weight | 1,000 kg |
|---|---|
| Engine | KOOP KD192F |
| Engine power | 7 kW at 3,000 rpm |
| Controls | Pilot joystick |
| Tracks | Rubber |
| System pressure | 16 MPa |
|---|---|
| Bucket digging force | 7.2 kN |
| Arm digging force | 4.6 kN |
| Bucket width | 380 mm |
| Length × width × height | 2,840 × 880 × 2,220 mm |
|---|---|
| Chassis width | 840 mm |
| Minimum ground clearance | 132 mm |
| Axle base | 900 mm |
| Digging height | 2,600 mm |
|---|---|
| Dumping height | 1,830 mm |
| Digging depth | 1,715 mm |
| Vertical digging depth | 1,590 mm |
| Digging radius | 3,065 mm |
| Minimum swing radius | 1,480 mm |
Identify the selected equipment and working tools in the order.
Planting holes, garden renovation and local soil preparation in restricted outdoor spaces.

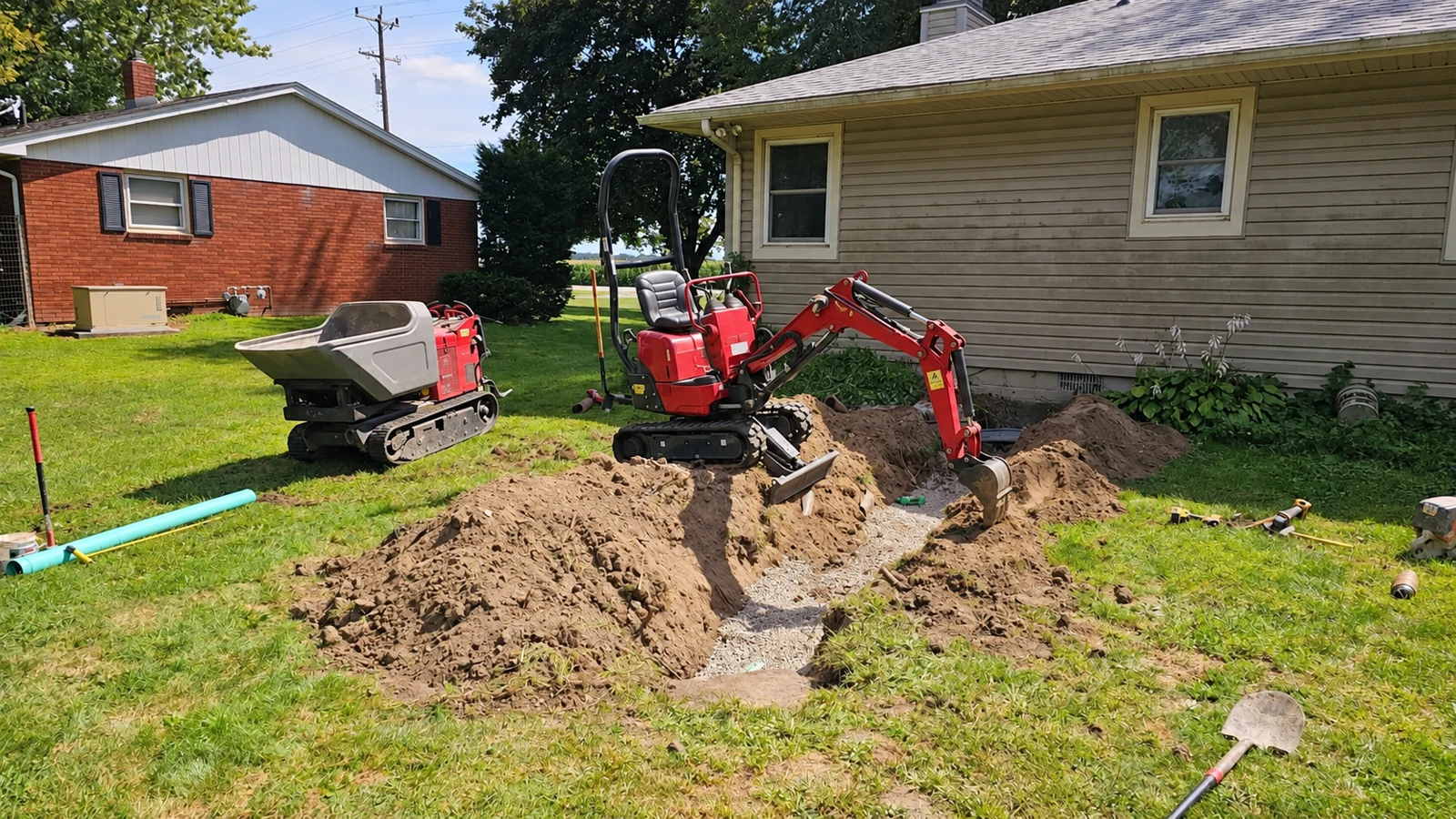

Narrow soil trenches for drainage or service installation within the machine’s depth and reach. Locate existing underground services first.
Narrow soil trenches and local ground preparation around homes and gardens. Check access width, digging reach and clearance for the boom and spoil.
Working photographs illustrate typical applications. Machine models and equipment may differ from the selected configuration.
Match the mounting interface, tool weight and hydraulic requirements. Identify the supplied tools and connections in the selected machine configuration.
Confirm the engine, operator station, selected tools, packed dimensions and transport weight. Include destination documents, maintenance instructions and the spare-parts scope in the order specification.
The overall machine width is 880 mm. Allow extra clearance for turns, the bucket and boom movement, rather than treating 880 mm as the complete working space.
Maximum digging depth is 1,715 mm and maximum digging radius is 3,065 mm. Depth, reach and dumping height are separate measurements.
The documented bucket width is 380 mm. Other bucket types or widths belong to a separate attachment selection.
It supplies oil to a compatible hydraulic attachment, such as a breaker. Check attachment weight, mounting dimensions, flow, pressure and hose connections before installation.
They are equipment choices. Identify the supplied bucket, coupler, hoses and additional tools individually in the order.
Rubber tracks are specified for this configuration. Steel-track alternatives are described, but the supplied undercarriage and track arrangement must be identified together.
Compact crawler excavators for digging, trenching and site preparation. Compare three machine classes and select the configuration for your access space and working depth.

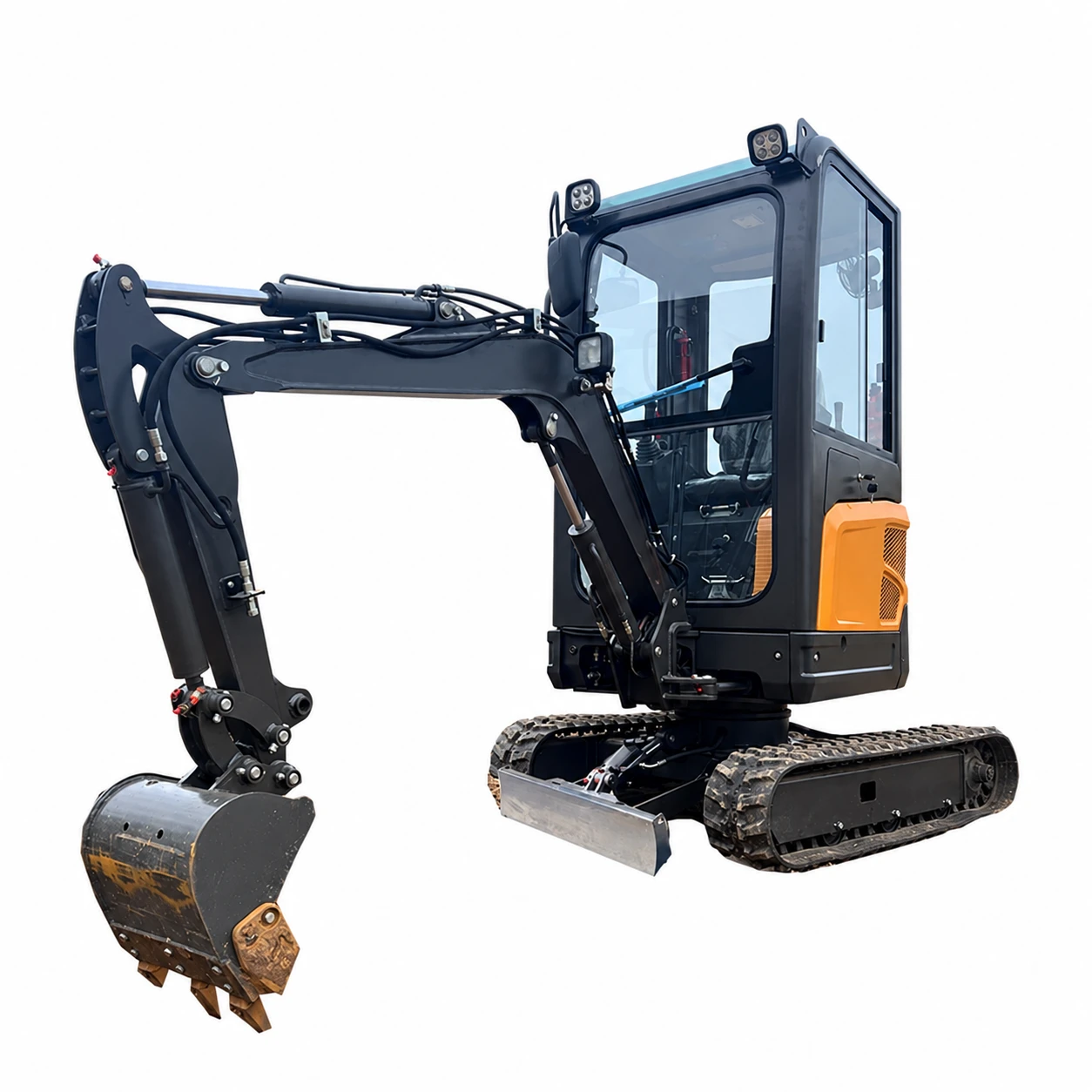

Choose your modelA 1.5-ton-class crawler excavator with a Kubota D722 engine, 990 mm overall width and 2,017 mm digging depth. Open-canopy and enclosed-cab configurations suit different operator requirements.
The 1,400 kg machine combines a 0.025 m³ bucket with 9 kN bucket digging force and a 3,529 mm digging radius. Its narrow width supports access planning for garden, orchard and farm excavation, while the blade handles local ground preparation.
The three-cylinder Kubota D722 is paired with separated engine and cooling spaces and an enhanced cooling fan. Two-stage fuel filtration protects the fuel supply from impurities. Pilot controls, cab or canopy choices and an auxiliary hydraulic line provide options for the operator and the working-tool package.
The three-cylinder engine is rated at 10.4 kW at 2,500 rpm in this configuration.
Separate engine and cooling spaces, together with an enhanced fan, support airflow through the cooling area.
A double fuel-filter arrangement removes impurities from the fuel supplied to the engine.
Pilot-operated joysticks control excavation movements from the operator station.

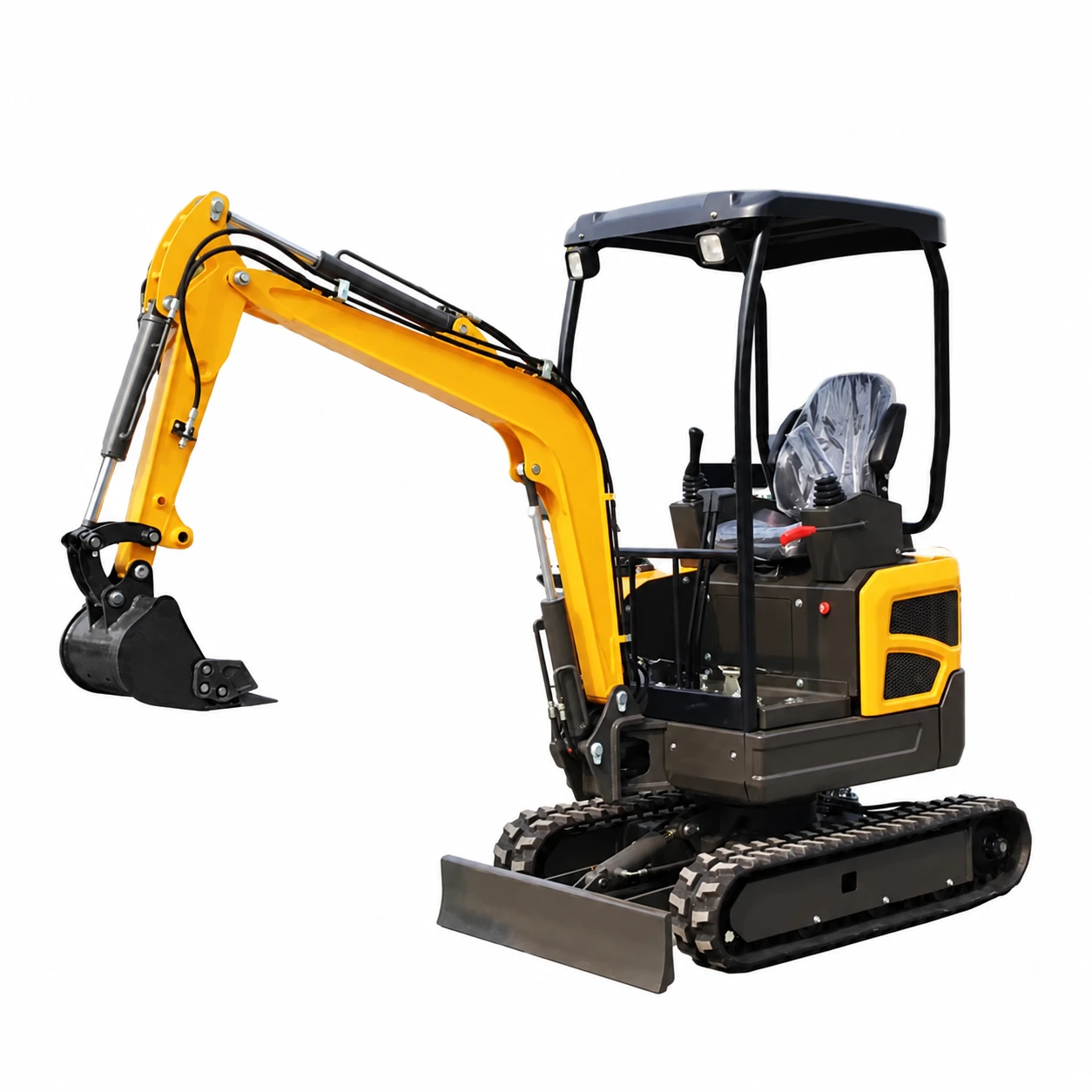

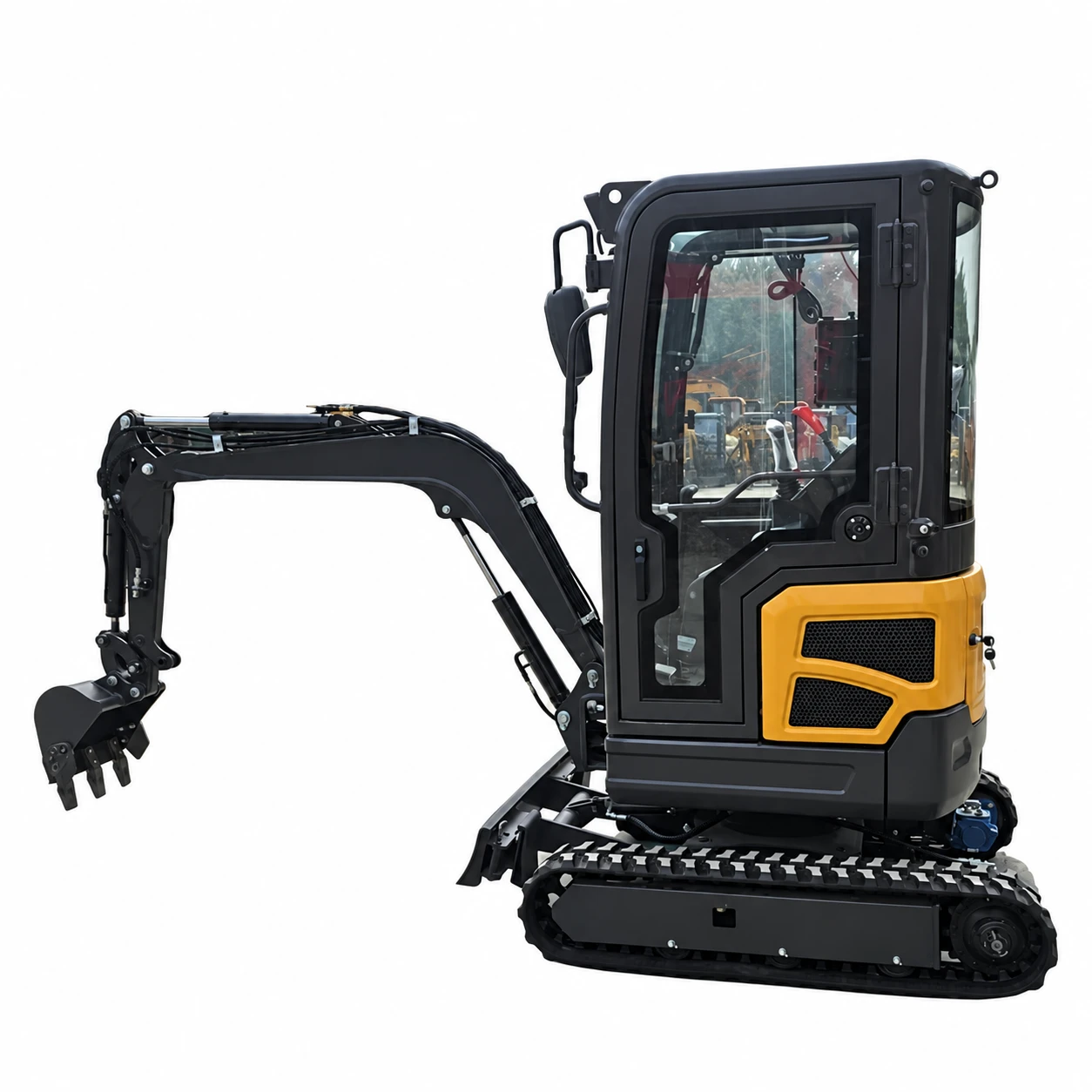

An enclosed cab and an open canopy provide alternative operator-station layouts.
Rubber and steel track versions are described; the selected tracks should suit the intended work surface.
The blade supports local levelling and backfilling, alongside a 2,017 mm digging depth.
The auxiliary line supports a checked breaker or other hydraulic-tool package; couplers and tools are separate choices.
Compare the actual operating weight, dimensions and digging range. The 1.5-ton class model lists an operating weight of 1,400 kg.
| Specification | |||
|---|---|---|---|
| Operating weight | 1,000 kg | 1,400 kg | 2,000 kg |
| Engine | KOOP KD192F | Kubota D722 | Kubota D1105 |
| Engine power | 7 kW at 3,000 rpm | 10.4 kW at 2,500 rpm | 14.2 kW at 2,000 rpm (maximum) |
| Digging depth | 1,715 mm | 2,017 mm | 2,400 mm |
| Digging radius | 3,065 mm | 3,529 mm | 4,040 mm |
| Length × width × height | 2,840 × 880 × 2,220 mm | 3,329 × 990 × 2,267 mm | 3,555 × 990 / 1,300 × 2,290 mm |
Reference configuration. Equipment, included attachments and supply specifications will be defined in the quotation.
| Operating weight | 1,400 kg |
|---|---|
| Engine | Kubota D722 |
| Rated power | 10.4 kW at 2,500 rpm |
| Maximum torque | 45 N·m at 2,500 rpm |
| Engine cylinders | 3 |
| Bucket capacity | 0.025 m³ |
| System pressure | 20 MPa |
|---|---|
| Bucket digging force | 9 kN |
| Arm digging force | 5.5 kN |
| Ground pressure | 23 kPa |
| Swing speed | 12–13 rpm |
| Travel speeds | 2.1 / 3.2 km/h |
| Length × width × height | 3,329 × 990 × 2,267 mm |
|---|---|
| Track width | 200 mm |
| Track length on ground | 1,190 mm |
| Tail swing radius | 655 mm |
| Ground clearance | 153 mm |
| Fuel / hydraulic tanks | 14.5 / 14.5 L |
| Digging radius | 3,529 mm |
|---|---|
| Digging depth | 2,017 mm |
| Digging height | 2,955 mm |
| Dumping height | 2,077 mm |
| Vertical digging depth | 1,610 mm |
| Blade height | 210 mm |
Identify the selected equipment and working tools in the order.

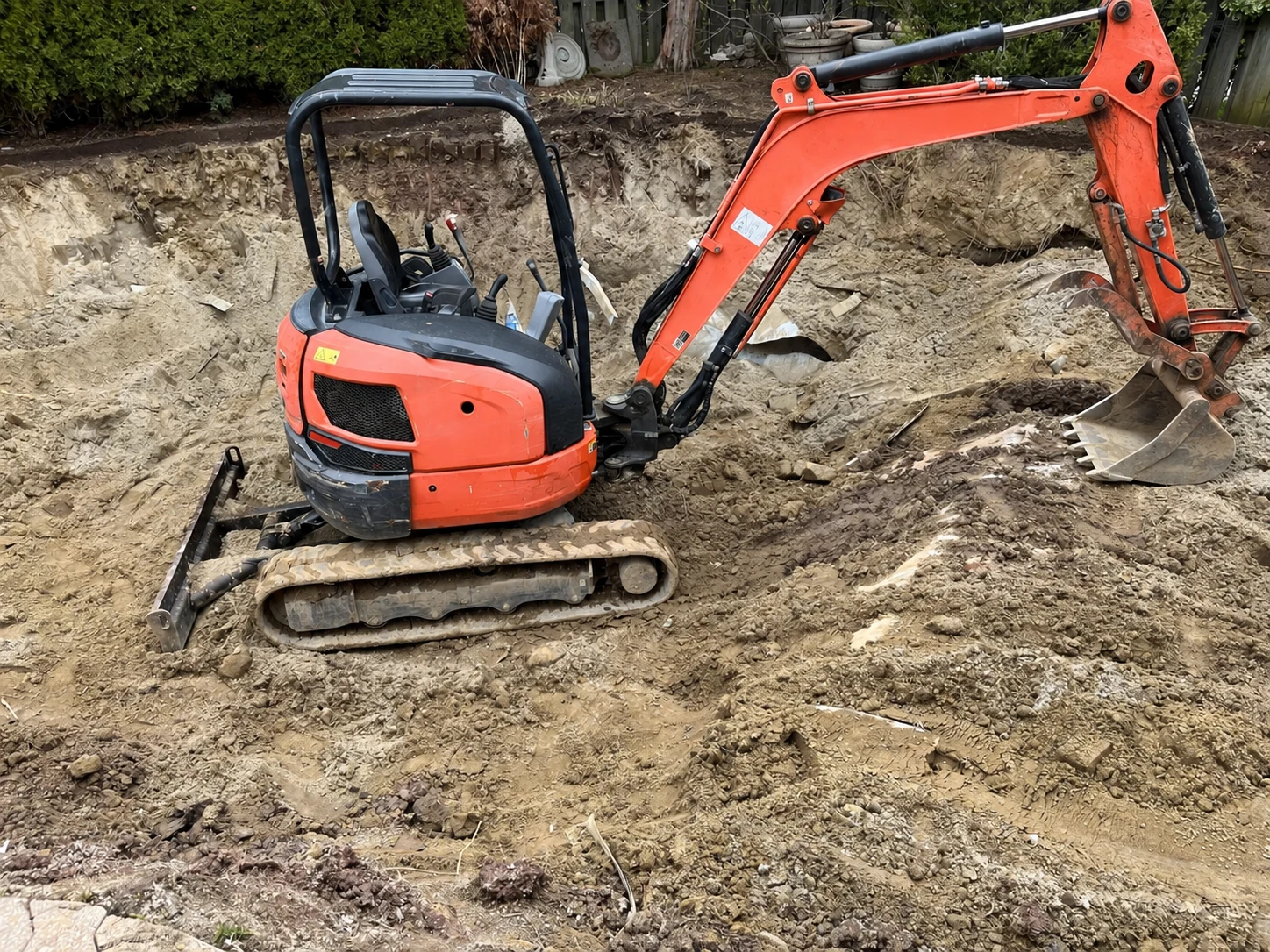

Planting excavations, small ground-level changes and soil preparation around landscaped outdoor areas.
Excavation for drainage and underground services in residential gardens. Check access width, underground services and the required trench depth.
Drainage or utility trenches where the 990 mm overall width and compact working range are useful.
Working photographs illustrate typical applications. Machine models and equipment may differ from the selected configuration.
Match the mounting interface, tool weight and hydraulic requirements. Identify the supplied tools and connections in the selected machine configuration.
Confirm the engine, operator station, selected tools, packed dimensions and transport weight. Include destination documents, maintenance instructions and the spare-parts scope in the order specification.
The 1.5-ton designation identifies the machine class. The operating weight of this configuration is 1,400 kg.
Both operator-station versions are shown. Specify the cab or canopy, its equipment and the selected tracks together.
Maximum digging depth is 2,017 mm and maximum digging radius is 3,529 mm.
The bucket force is 9 kN and the arm force is 5.5 kN. They describe different movements and are not interchangeable.
The auxiliary hydraulic line supports compatible powered attachments. Couplers, breakers, augers and grapples are equipment options; match the mounting interface, tool weight and hydraulic requirements.
Rubber and steel tracks are available. Choose the track type for the intended surface and confirm it together with the operator station and attachments.
Compact crawler excavators for digging, trenching and site preparation. Compare three machine classes and select the configuration for your access space and working depth.

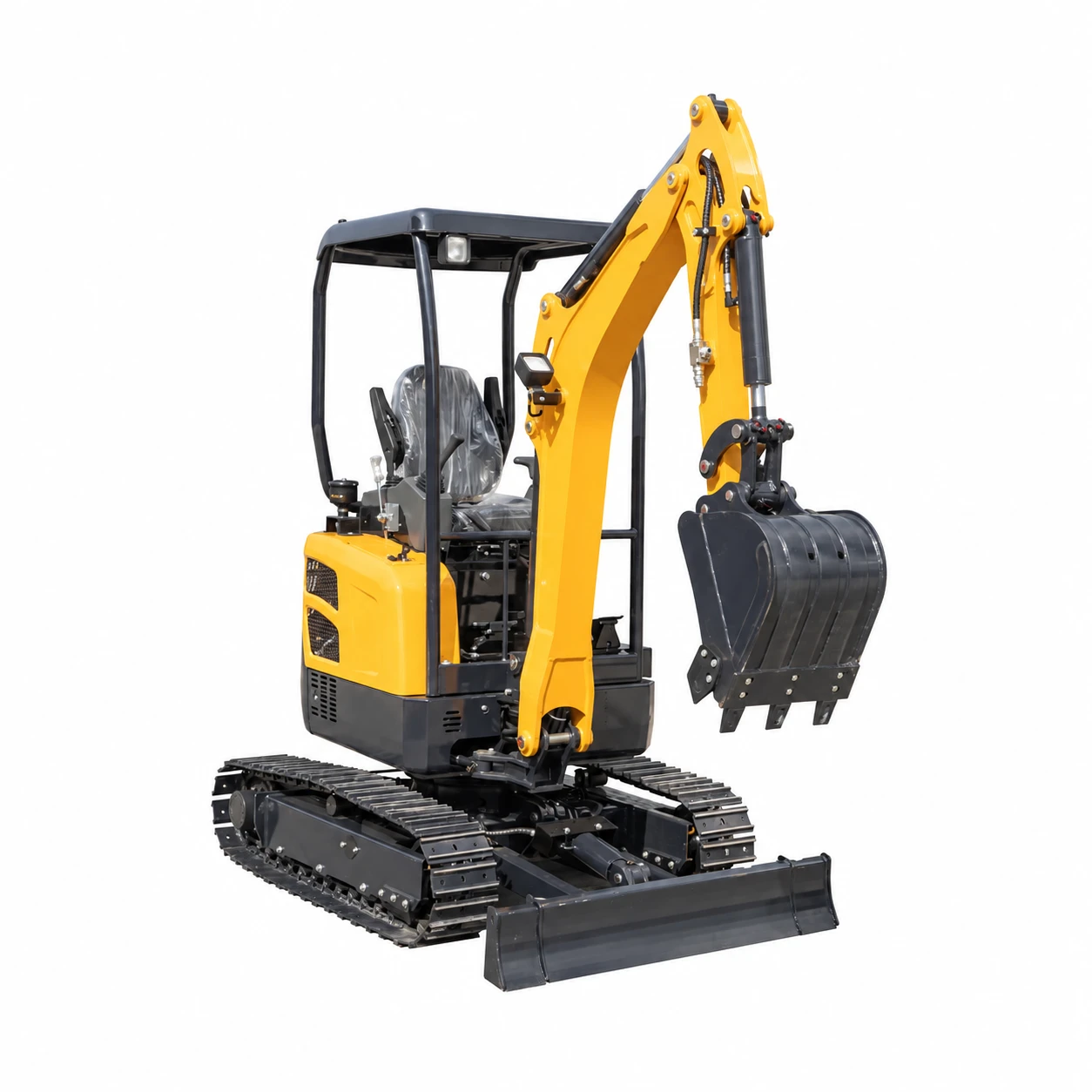

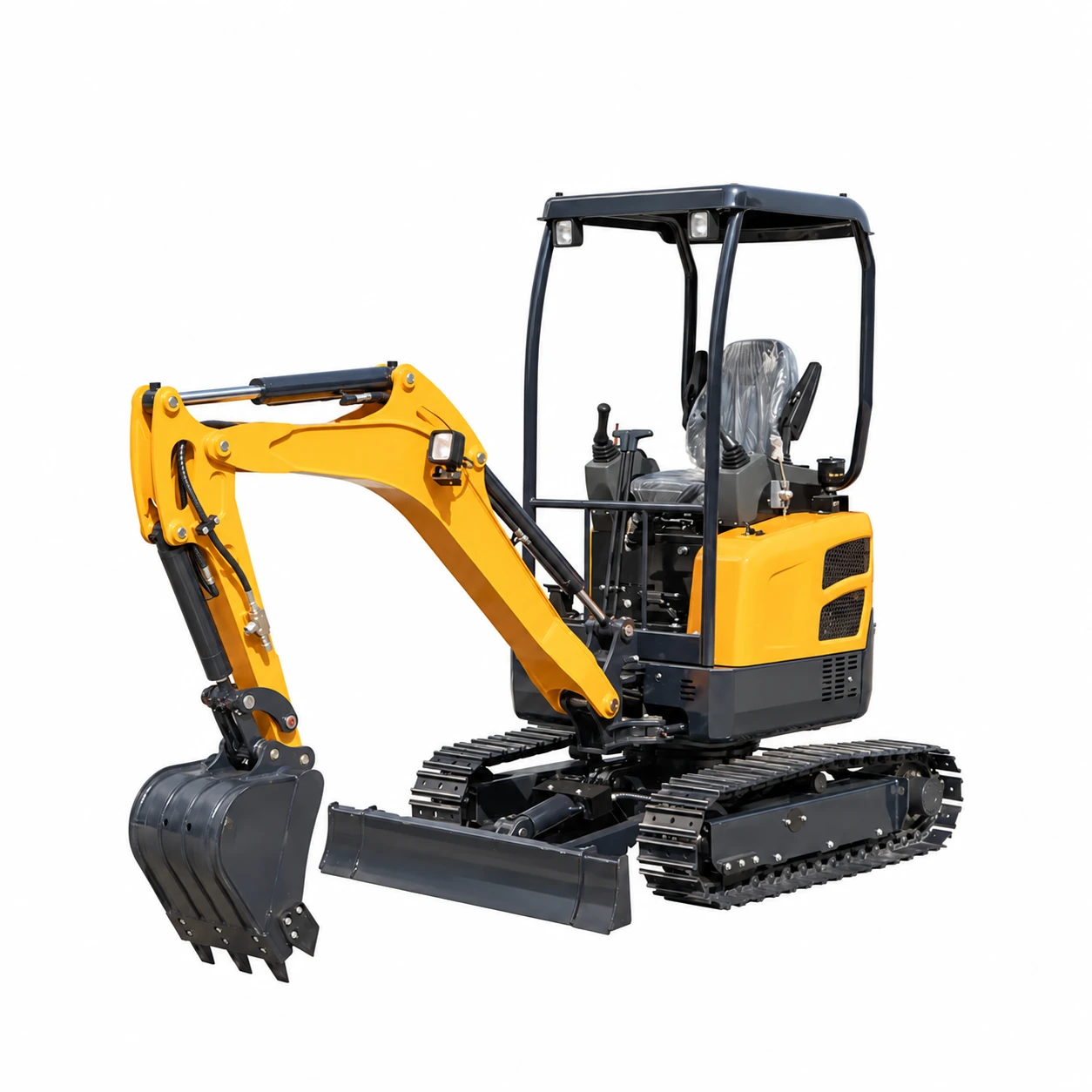

Choose your modelA 2-ton crawler excavator for utility trenches, landscape work and small-site excavation, with a Kubota D1105 engine, 0.07 m³ bucket and 2,400 mm digging depth.
The excavation configuration combines 18 kN bucket force, 11 kN arm force and a maximum radius of 4,040 mm. These dimensions support trenching, planting excavations and local footing work where the site requires a compact crawler machine.
The water-cooled Kubota D1105 powers a gear-pump hydraulic system with pilot joystick control. A dozer blade supports backfilling and local levelling. Rubber or steel tracks and additional buckets, breakers or augers provide equipment choices for different surfaces and tasks.
The water-cooled, three-cylinder engine has 1.123 L displacement and a stated maximum output of 14.2 kW.
A 4,040 mm maximum digging radius complements the depth for trench and small-site excavation planning.
The specifications distinguish 18 kN bucket force from 11 kN arm force.
Joystick pilot controls operate the digging equipment from the operator station.
A gear pump supplies the working circuit, with system pressure stated separately from pump capacity.
Alternative track configurations allow the ground-contact arrangement to be selected for the work surface.
The digging bucket handles soil excavation; the dozer blade supports local levelling and backfilling.
An auxiliary line and optional couplers, breakers, augers and additional buckets extend the equipment package.
Compare the actual operating weight, dimensions and digging range. The 1.5-ton class model lists an operating weight of 1,400 kg.
| Specification | |||
|---|---|---|---|
| Operating weight | 1,000 kg | 1,400 kg | 2,000 kg |
| Engine | KOOP KD192F | Kubota D722 | Kubota D1105 |
| Engine power | 7 kW at 3,000 rpm | 10.4 kW at 2,500 rpm | 14.2 kW at 2,000 rpm (maximum) |
| Digging depth | 1,715 mm | 2,017 mm | 2,400 mm |
| Digging radius | 3,065 mm | 3,529 mm | 4,040 mm |
| Length × width × height | 2,840 × 880 × 2,220 mm | 3,329 × 990 × 2,267 mm | 3,555 × 990 / 1,300 × 2,290 mm |
Reference configuration. Equipment, included attachments and supply specifications will be defined in the quotation.
| Operating weight | 2,000 kg |
|---|---|
| Engine | Kubota D1105 |
| Maximum power | 14.2 kW at 2,000 rpm |
| Maximum torque | 71.4 N·m |
| Displacement | 1.123 L |
| Bucket capacity | 0.07 m³ |
| System pressure | 21.5 MPa |
|---|---|
| Pump type | Gear pump |
| Pump capacity | 48.4 L/min |
| Bucket / arm digging force | 18 / 11 kN |
| Hydraulic system capacity | 17 L |
| Fuel tank | 15 L |
| Length × width × height | 3,555 × 990 / 1,300 × 2,290 mm |
|---|---|
| Chassis width | 1,300 mm |
| Ground clearance | 150 mm |
| Axle base | 1,230 mm |
| Tail swing radius | 650 mm |
| Blade lift / depth | 240 / 270 mm |
| Digging height | 3,700 mm |
|---|---|
| Dumping height | 2,440 mm |
| Digging depth | 2,400 mm |
| Vertical digging depth | 2,025 mm |
| Digging radius | 4,040 mm |
| Minimum swing radius | 1,610 mm |
Identify the selected equipment and working tools in the order.
Planting excavations, irrigation trenches and local soil levelling around residential landscapes.
Soil channels for pipes, cables or drainage, within the machine’s documented working range.

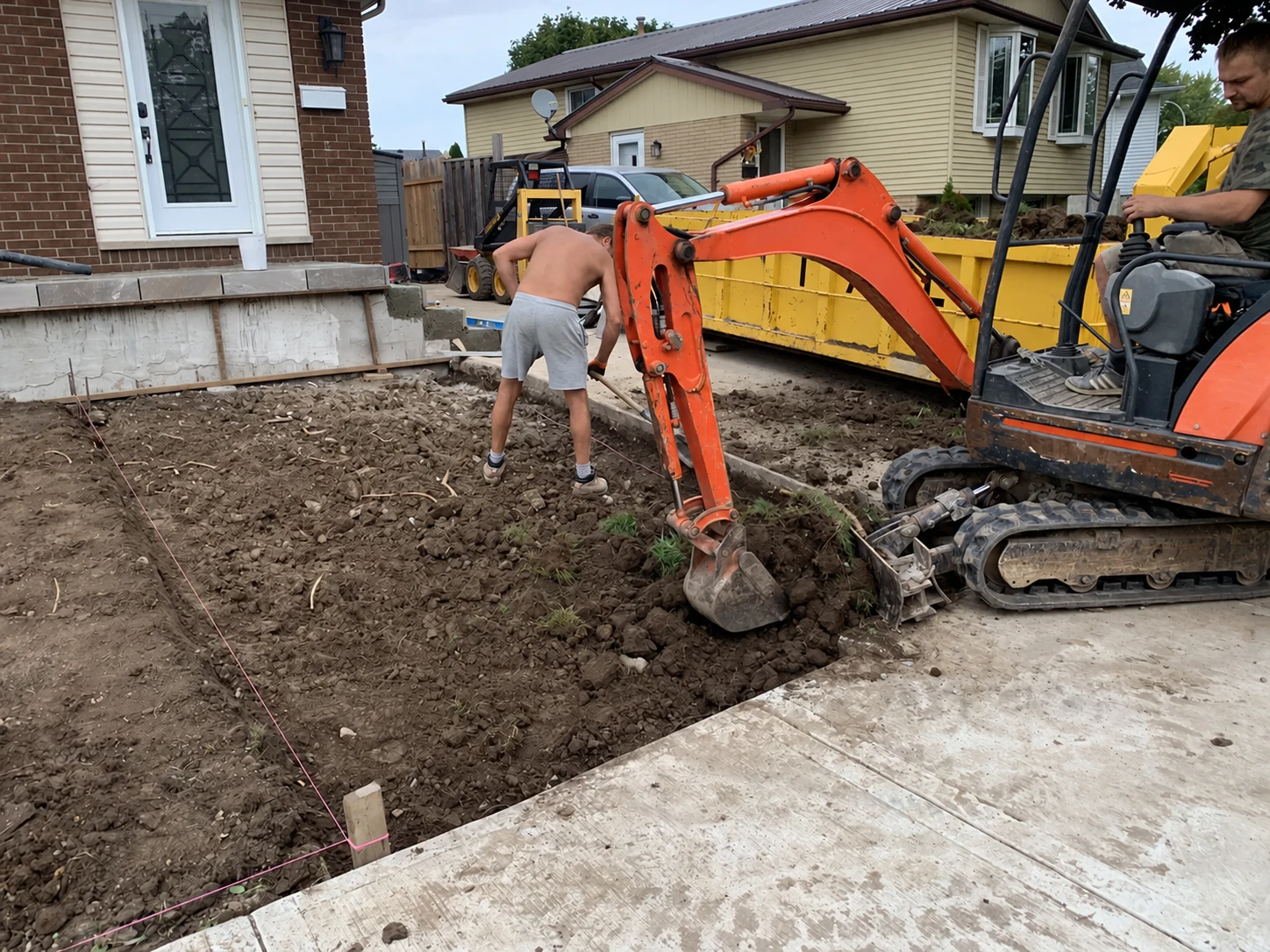

Local footing excavation and site preparation with room for the crawler chassis, spoil and boom movement.
Working photographs illustrate typical applications. Machine models and equipment may differ from the selected configuration.
Match the mounting interface, tool weight and hydraulic requirements. Identify the supplied tools and connections in the selected machine configuration.
Confirm the engine, operator station, selected tools, packed dimensions and transport weight. Include destination documents, maintenance instructions and the spare-parts scope in the order specification.
The specifications give 2,400 mm depth and 4,040 mm radius. Use both figures when planning the work area.
14.2 kW is the maximum engine output in the published specification. Maximum and rated power are different measurements.
48.4 L/min is the pump-capacity figure. Attachment flow also depends on the auxiliary circuit and operating settings; confirm the available flow before selecting a powered attachment.
Rubber and steel tracks are available as alternative configurations. Confirm the selected track type and chassis width when ordering.
Compare tool weight, mounting dimensions, auxiliary flow and pressure, and the required hoses or return connections.
The documented applications include soil trenching, small footing excavations, planting preparation, drainage and utility work within the machine’s working range.
