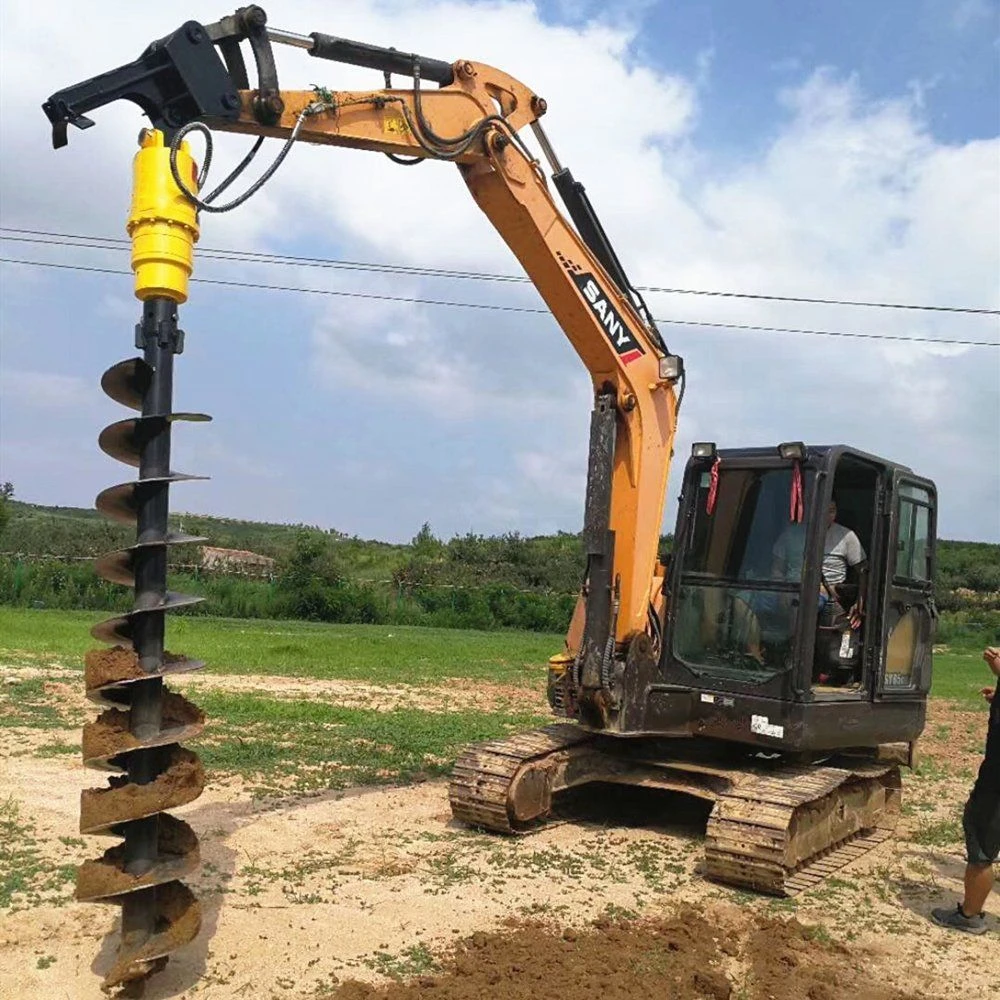

Hydraulic drilling drive
The excavator-mounted hydraulic drive rotates a compatible auger for earth drilling.
← Augers & Drilling ToolsJY-DG series · Hydraulic drilling
Hydraulic Auger Drives
Provide rotary power to a compatible auger through a hydraulic drive unit.
- Excavator weight
- 2–36 t
- Hydraulic flow
- 70–170 L/min
- Output shaft
- 75Sq / 95Sq mm
Product & applications
About the hydraulic auger drives
Provide rotary power to a compatible auger through a hydraulic drive unit.
Features & benefits
Square output connection
The series uses 75 mm and 95 mm square output connections on different drive sizes.
Size-specific drilling range
Different drive sizes provide the torque and hole-diameter ranges shown in the specifications; the chosen bit must suit the ground.
Typical applications
- Fence and post installationDrill holes in suitable soil for posts and supports, using the required auger diameter.
- Tree planting and landscapingPrepare planting holes in ground suited to the selected soil auger.
- Construction earth drillingDrill suitable earth holes for construction work within the selected drive and bit limits.
Compare 5 hydraulic drive models
Sq denotes a square output shaft. Torque values are listed as ranges.
| Specification | Unit | JY-DG30Z | JY-DG60Z | JY-DG80Z | JY-DG150Z | JY-DG200Z |
|---|---|---|---|---|---|---|
| Torque | Nm | 3500-4000 | 5000-6300 | 7200-10000 | 12000-15000 | 17000-20000 |
| Operating pressure | bar | 80-140 | 80-180 | 80-180 | 80-260 | 180-260 |
| Hydraulic oil flow | L/min | 70-120 | 70-150 | 70-150 | 80-170 | 80-170 |
| Rotational speed | rpm | 20-50 | 20-50 | 20-40 | 20-35 | 15-30 |
| Output shaft | mm | 75Sq | 75Sq | 75Sq | 75Sq | 95Sq |
| Drilling diameter range | mm | 200-400 | 200-600 | 200-800 | 200-1000 | 200-1200 |
| Excavator operating weight | t | 2-3 | 5-8 | 12-18 | 18-24 | 25-36 |
Installation requirements
Confirm the attachment fits your excavator
Before ordering, send the machine identification and the connection, power and working information relevant to this product.
Ground conditions
Soil, rock, roots and moisture affect bit selection.
Hole dimensions
Required diameter, depth and any extension.
Drive connection
Output shaft shape and size must match the bit.
Hydraulic drive
Carrier flow, pressure, torque and mounting bracket.
Product questions
Hydraulic Auger Drives questions
Are the auger drive and auger bit separate components?
Yes. The hydraulic drive turns a separate ground-engaging auger bit. Confirm the selected bit, extension and shaft connection for the required drilling task.
Can one bit drill all ground types?
No. Soil and rock require the appropriate cutting teeth and bit geometry for the formation.
How should a drive be selected?
Compare required hole diameter, depth and ground conditions with model-specific torque, hydraulic flow and pressure.
Which connections must match?
The excavator mounting, hydraulic supply and output shaft must match the drive, bit and any extension.
