Combined sowing and fertilising
Seed and fertiliser are delivered separately during the same pass.
Seeding, Planting & FertilisingAgricultural implement
Mechanical seed drill

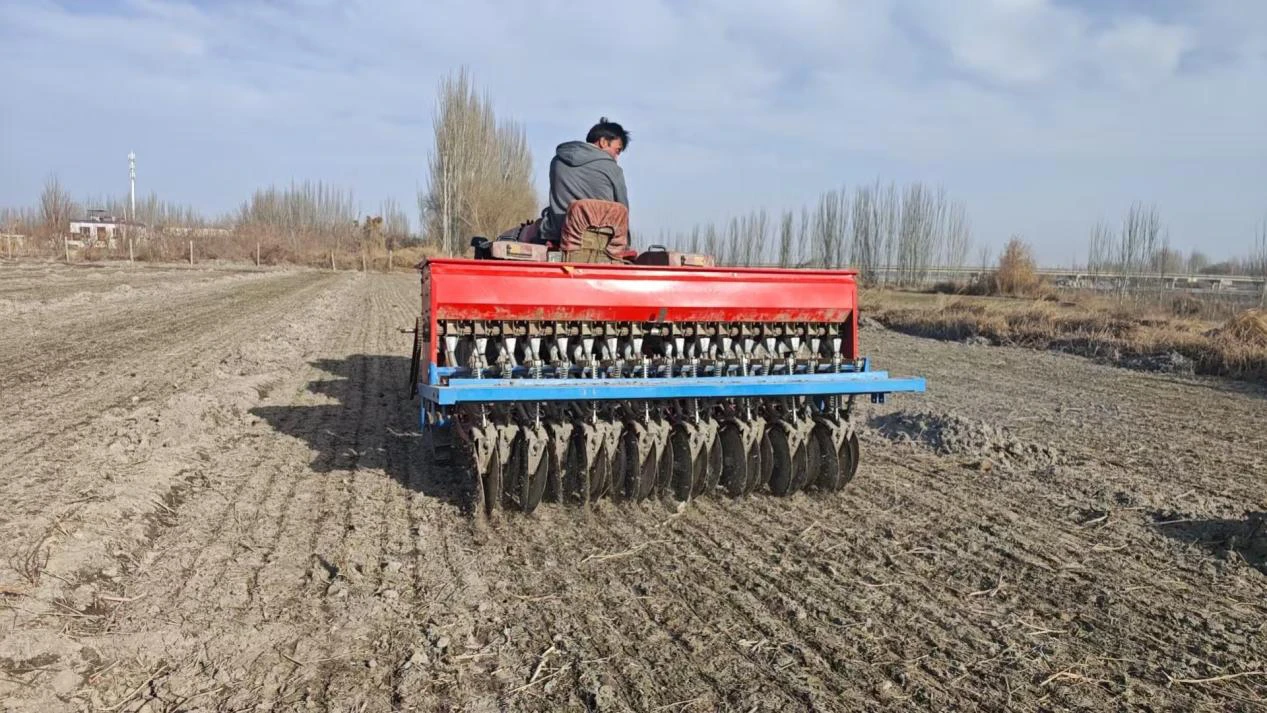

A tractor-mounted wheat seed-and-fertiliser drill that combines furrow opening, sowing, fertilising and soil covering, with seed and fertiliser placed separately at different depths.
- Product family
- Seeding, Planting & Fertilising
- Models
- 5 configurations
Product & applications
About the mechanical seed drill
A tractor-mounted wheat seed-and-fertiliser drill that combines furrow opening, sowing, fertilising and soil covering, with seed and fertiliser placed separately at different depths.
Features & benefits
Double-disc openers
Double-disc opening elements prepare the seed and fertiliser placement paths.
Adjustable metering quantities
Seed and fertiliser delivery quantities are adjustable.
Separate placement depths
The series specifies different seeding and fertilising depths.
Typical applications
- Wheat establishmentRow drilling and fertiliser placement in prepared wheat ground.
- Suitable plains and hilly fieldsSuitable for plains and hilly fields; assess tractor stability and the permitted slope before use.
Models, dimensions and working requirements
| Model | JY-2BXF-9 | JY-2BXF-12 | JY-2BXF-14 | JY-2BXF-16 | JY-2BXF-18 |
|---|---|---|---|---|---|
| Seeding rows | 9 | 12 | 14 | 16 | 18 |
| Weight(kg) | 220 | 260 | 310 | 360 | 1200 |
| Power(hp) | 12-20 | 20-25 | 25-35 | 35-50 | 35-60 |
| Row spacing (mm) | 150 | 150 | 150 | 150 | 150 |
| Seed and fertiliser opener type | Double-disc types | Double-disc types | Double-disc types | Double-disc types | Double-disc types |
| Seeding depth (mm) | 20-50 | 20-50 | 20-50 | 20-50 | 20-50 |
| Fertilizing depth(mm) | 60-80 | 60-80 | 60-80 | 60-80 | 60-80 |
Installation requirements
Confirm the implement fits your tractor
Before ordering, send the machine identification and the connection, power and working information relevant to this product.
Tractor power and lift
Use the selected model’s power and weight values, including the loaded hopper, rather than the broader introductory power range.
Rear mounting
Confirm the tractor mounting arrangement, pin geometry and clearance around the drill.
Seed and fertiliser
Provide wheat seed characteristics and fertiliser properties; calibrate the separate delivery quantities before working.
Rows and depth
Confirm row count, working access and the seed and fertiliser depth settings in prepared ground.
Product questions
Mechanical seed drill questions
Does fertiliser go to the same depth as seed?
No. Seed and fertiliser are delivered separately at their respective placement depths.
What information is needed to calibrate seed and fertiliser rates?
Provide wheat seed characteristics and fertiliser properties; calibrate the separate delivery quantities before working.
What should I check before installation?
Use the selected model’s power and weight values, including the loaded hopper, rather than the broader introductory power range. Confirm the tractor mounting arrangement, pin geometry and clearance around the drill.
