Mouldboard plough manufacturer product reference
Tillage & Soil PreparationAgricultural implement

Mouldboard plough

A rear-mounted mouldboard plough for primary tillage, turning furrows and burying surface residue before field preparation.

Product family
Tillage & Soil Preparation
Models
3 configurations
Request a QuoteChat on WhatsApp
Product & applications

About the mouldboard plough

A rear-mounted mouldboard plough for primary tillage, turning furrows and burying surface residue before field preparation.

Features & benefits

01

Soil inversion

Mouldboard bodies turn the cut soil into a furrow rather than mixing it with a powered rotor.

02

Plough-body counts by model

The 1LX range provides different body counts for the available tractor power and field conditions.

03

Three-point mounting

The mounted frame connects to the tractor rear linkage for lifting at headlands.

Typical applications

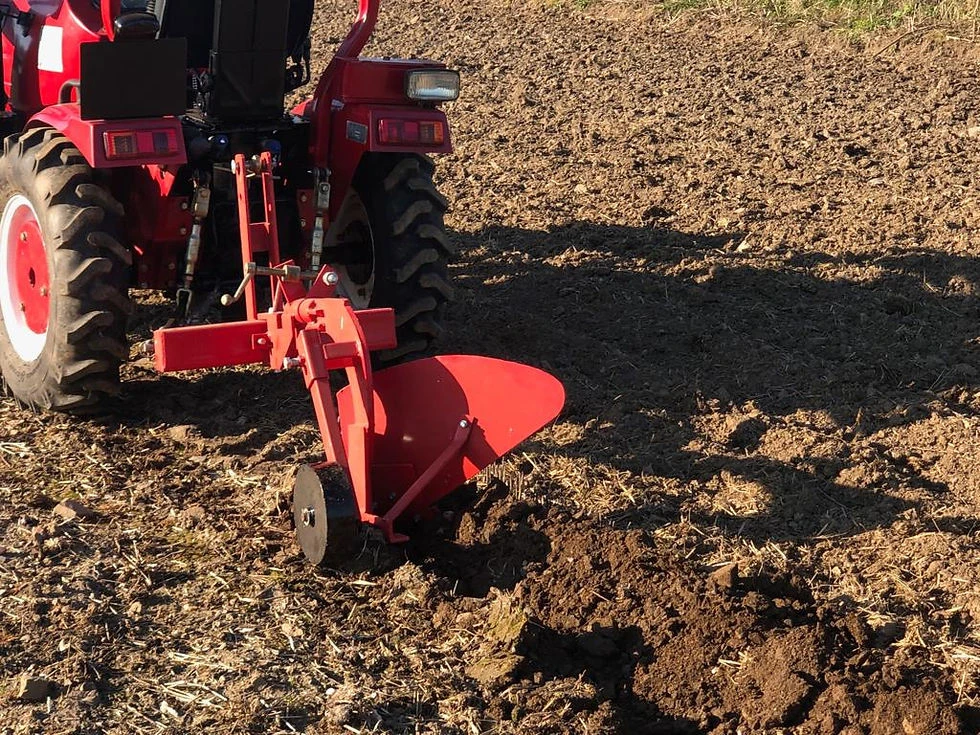

Soil ploughing with a fixed mouldboard plough
Soil ploughing with a fixed mouldboard plough
  • Dry-field primary tillageTurn furrows in dry cultivated or fallow land before subsequent seedbed preparation.
  • Surface residue incorporationBury suitable surface residue through soil inversion. Choose the plough-body arrangement for the tractor and field conditions.
Technical specifications

Models, dimensions and working requirements

ModelJY-1LX-220JY-1LX-320JY-1LX-420
Tractor HP15-20HP25-35HP30-40HP
Working Depth120-160mm120-160mm120-160mm
Weight65kg105kg195kg
Packing Size of 10~12pcs2200*1000*1100mm2200*1000*1100mm2200*1000*1100mm
Installation requirements

Confirm the implement fits your tractor

Before ordering, send the machine identification and the connection, power and working information relevant to this product.

  1. Tractor and traction

    Compare the model-specific tractor-power range, implement weight and the traction required in the actual soil.

  2. Rear mounting

    Match the actual rear linkage and lifting capacity to the chosen frame and working width.

  3. Working geometry

    Check working width, ploughing depth, the number of plough bodies and turning space at the field ends.

  4. Soil and field conditions

    Describe soil texture, moisture, residue and field access. This family works through tractor movement without a PTO-driven rotor.

Product questions

Mouldboard plough questions

Is this a hydraulic reversible plough?

No. This 1LX family is a fixed mouldboard plough. A hydraulic reversible plough uses a different reversing frame and hydraulic mechanism.

How should I choose the ploughing width and number of plough bodies?

Check working width, ploughing depth, the number of plough bodies and turning space at the field ends.

What should I check before installation?

Compare the model-specific tractor-power range, implement weight and the traction required in the actual soil. Match the actual rear linkage and lifting capacity to the chosen frame and working width.
