Multi-tine gripping
Several hydraulic tines close around irregular scrap and suitable loose material.
← Grapples & Material HandlingJY-OP series · Excavator attachment
Orange-peel grapple
A hydraulic multi-shell grapple for collecting and loading loose scrap and bulk material. Compare opening width, grab volume and the hydraulic requirements for the selected carrier.
- Primary work
- Scrap handling
- Model range
- 5 configurations
Product & applications
About the orange-peel grapple
A hydraulic multi-shell grapple for collecting and loading loose scrap and bulk material. Compare opening width, grab volume and the hydraulic requirements for the selected carrier.
Features & benefits
Rotating handling assembly
The described rotating arrangement changes the load orientation during loading and unloading.
Wear protection at the claws
Wear-resistant plate protects the claws where they contact the ground and material.
Typical applications

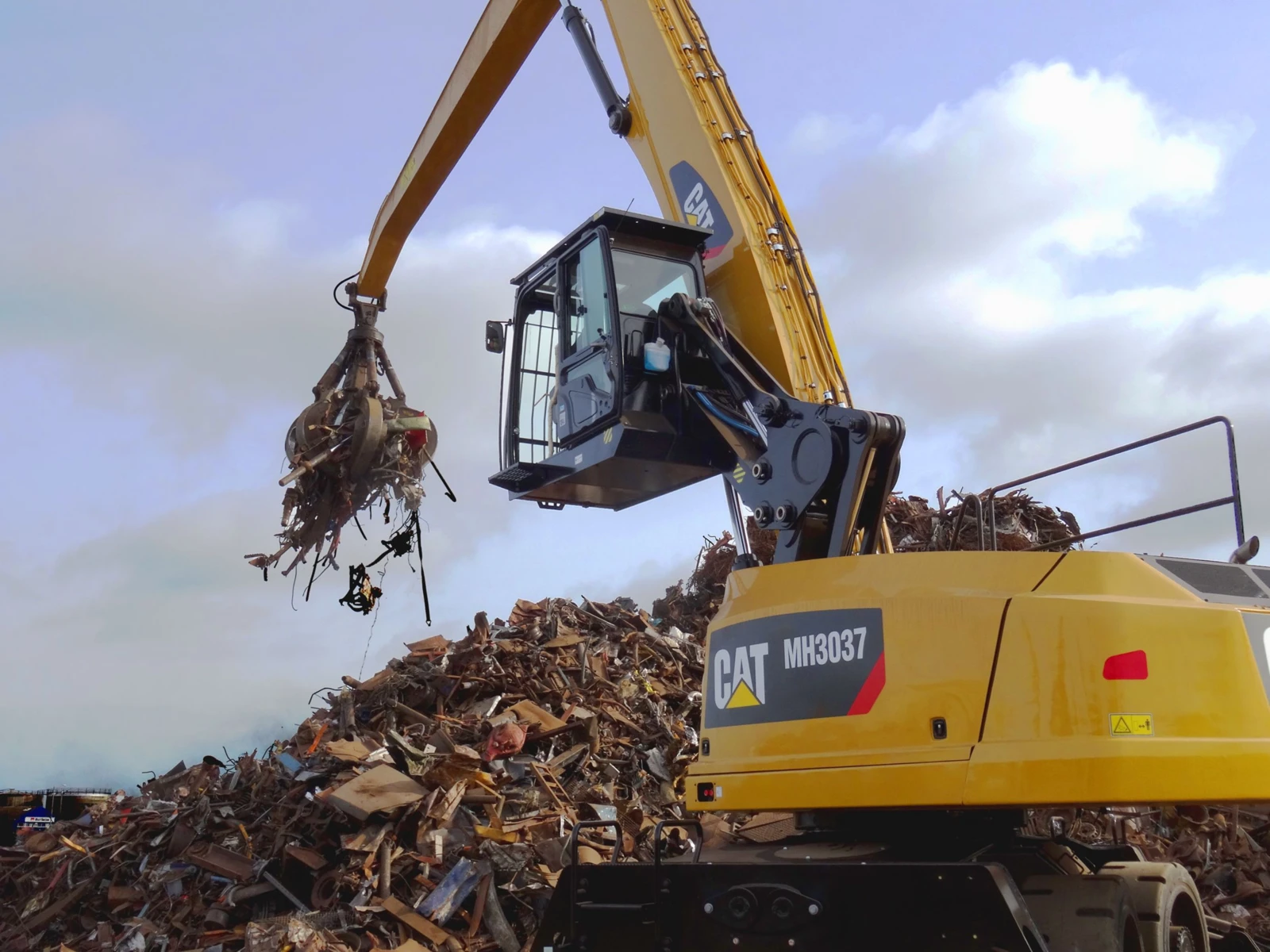

- Scrap handlingCollect and load loose scrap at recycling and handling sites.
- Bulk material loadingGrip irregular loose material with multiple closing shells.
- Waste handlingMove suitable loose waste during sorting and loading operations.
Compare dimensions and hydraulic requirements
Check attachment weight, machine size and installation requirements together.
| Specification | Unit | JY-OP-01 | JY-OP-02-04 | JY-OP-06 | JY-OP-08 | JY-OP-10 |
|---|---|---|---|---|---|---|
| Excavator operating weight | t | 3-4 | 4-9 | 12-16 | 17-25 | 26-35 |
| Attachment weight | kg | 200-250 | 400-600 | 900-1100 | 1200-1500 | 1800-2200 |
| Open width A | mm | 1100 | 1275 | 1623 | 1998 | 2474 |
| Closed width B | mm | 887 | 1064 | 1283 | 1684 | 2067 |
| Operating pressure | MPa | 16-20 | 16-20 | 18-23 | 18-23 | 20-25 |
| Closed grab volume | m³ | 0.10 | 0.15 | 0.25 | 0.60 | 0.90 |
| Open grab volume | m³ | 0.39 | 0.61 | 1.08 | 2.24 | 2.99 |
On smaller screens, swipe the table sideways to compare every model.
Installation requirements
Confirm the attachment fits your excavator
Before ordering, send the machine identification and the connection, power and working information relevant to this product.
- D1 / D2
- Both pin diameters
- C
- Pin centre distance
- W
- Clear mounting width
Machine identification
Excavator model and operating weight
Lifting capacity
Carrier lifting capacity at the working radius
Hydraulic supply
Mounting dimensions and hydraulic circuit
Working material
Material bulk density, shape and piece size
Jaw or shell geometry
Required shell configuration, opening and grab volume
Product questions
Orange-peel grapple questions
What is an orange-peel grapple used for?
Its closing tines grip suitable scrap and irregular bulk material for sorting and loading.
Should I select open or more enclosed tines?
Compare material size and shape with the specified tine geometry. The amount of enclosure affects how the load is contained.
Does every orange-peel grapple rotate?
No. Rotation is configuration-specific and requires its own connection and control checks when supplied.
Is volume enough to determine the load?
No. Material density, attachment mass, grip geometry and the excavator lifting chart all affect the permitted load.
