Tiltrotator

Combine tilt and rotation to position compatible tools around obstacles and finish surfaces from different directions.

Request a QuoteChat on WhatsApp
Product & applications

About the tiltrotator

Combine tilt and rotation to position compatible tools around obstacles and finish surfaces from different directions.

Features & benefits

01

Tilt and rotation

Two positioning functions orient a compatible tool for grading and working around obstacles.

02

Upper and lower connections

The upper connection mounts to the excavator; the lower interface connects the selected working tool.

03

Tool orientation

Changing the tool angle helps position the working edge without relying only on excavator slewing.

Typical applications

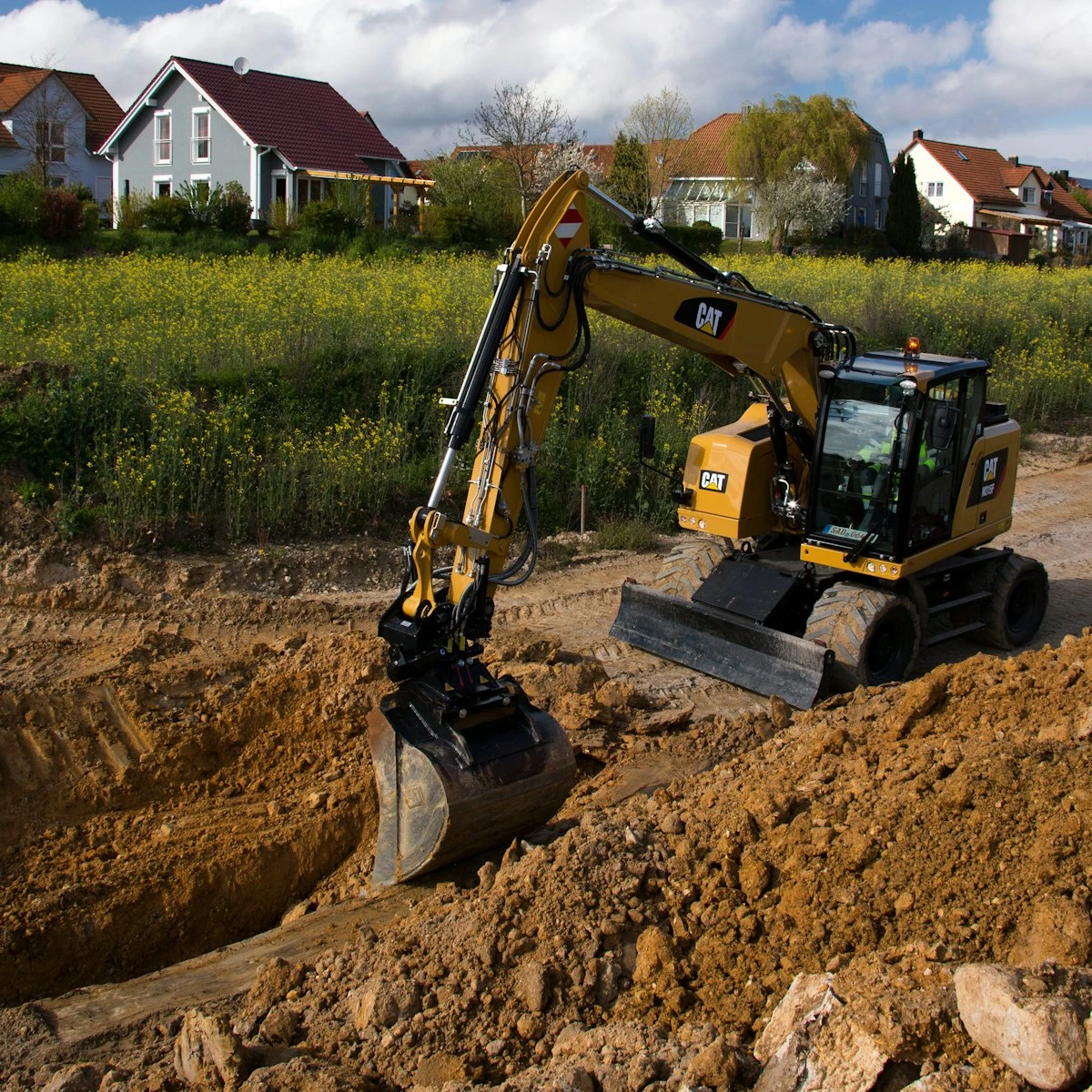

Ditch shaping with a tiltrotator and grading bucket
Ditch shaping with a tiltrotator and grading bucket
  • Angled gradingTilt and rotate a compatible grading tool to shape slopes and changing ground profiles.
  • Work around obstaclesOrient the working tool where the excavator cannot be positioned directly in line with the work.
  • Directional digging and handlingChange tool orientation during suitable digging, positioning and material-handling tasks.
Technical configuration

Compare Configurations

Check the dimensions against your excavator and attachment drawings. Include the required configuration in your enquiry.

Configuration dimensions and technical data
SpecificationUnitJY-TR-900JY-TR-1600JY-TR-3200JY-TR-5000JY-TR-7000JY-TR-9000JY-TR-15000
Applicable Excavator [Tons]1.5–3.03.0–5.05.0–8.08.0–12.012.0–15.015–2323–30
Working Pressure [MPa]18.0–21.018.0–21.018.0–21.018.0–21.018.0–21.018.0–21.018.0–21.0
Working Flow [L/min]20–3530–8030–8040–12040–12050–16060–180
Max Circuit Pressure [MPa]2.52.52.52.52.52.52.5
Weight [kg]112195285390520650800
Output Torque [N·m]900350080009500120001600028000
Axial Load [kN]14.463136190244298352
Radial Dynamic Load [kN]11.148115148181214247
Rotation Angle [°]±360±360±360±360±360±360±360
Rotation Time [s]7777777
Rotation Flow Rate [L/min]24255055607590
Tilt Torque [N·m]9001600320050007000900015000
Tilt Angle [°]±67±67±67±67±67±67±67
Tilt Time [s]5555555
Tilt Flow Rate [L/min]77.51921263240
Installation requirements

Confirm the attachment fits your excavator

Before ordering, send the machine identification and the connection, power and working information relevant to this product.

  1. Both connections

    Check the excavator end and attachment end separately.

  2. Locking mechanism

    Confirm pin dimensions, locking system and operating checks.

  3. Hydraulic supply

    Powered locking, tilt and rotation may need different circuits.

  4. Clearance and weight

    Review tool weight, geometry and operating clearance.

Product questions

Tiltrotator questions

What is the difference between a tiltrotator and a tilting coupler?

A tiltrotator provides both tilt and rotation. A tilting coupler does not itself establish a continuous rotation function.

Which connections must be checked?

Check the upper machine connection and the lower tool interface, including locking engagement and clearance.

What controls are required?

The specified tilt, rotation and locking functions require the corresponding hydraulic and control arrangement for the selected model.

What changes after adding a tiltrotator?

Connection height, attachment mass and tool geometry change. Check reach, lifting limits and clearance throughout the permitted movement.
