Bale spear manufacturer product reference
Tractor Loaders & Handling ToolsAgricultural implement

Bale spear

A two-tine Euro-mounted bale spear for lifting and positioning suitable hay and straw bales.

Product family
Tractor Loaders & Handling Tools
Models
1 configurations
Request a QuoteChat on WhatsApp
Product & applications

About the bale spear

A two-tine Euro-mounted bale spear for lifting and positioning suitable hay and straw bales.

Features & benefits

01

Two main spears

The spaced spears penetrate and support suitable bales during handling.

02

Euro loader connection

The frame connects to a compatible Euro attachment interface.

03

Open frame

The compact frame leaves the bale and spear arrangement visible during positioning.

Typical applications

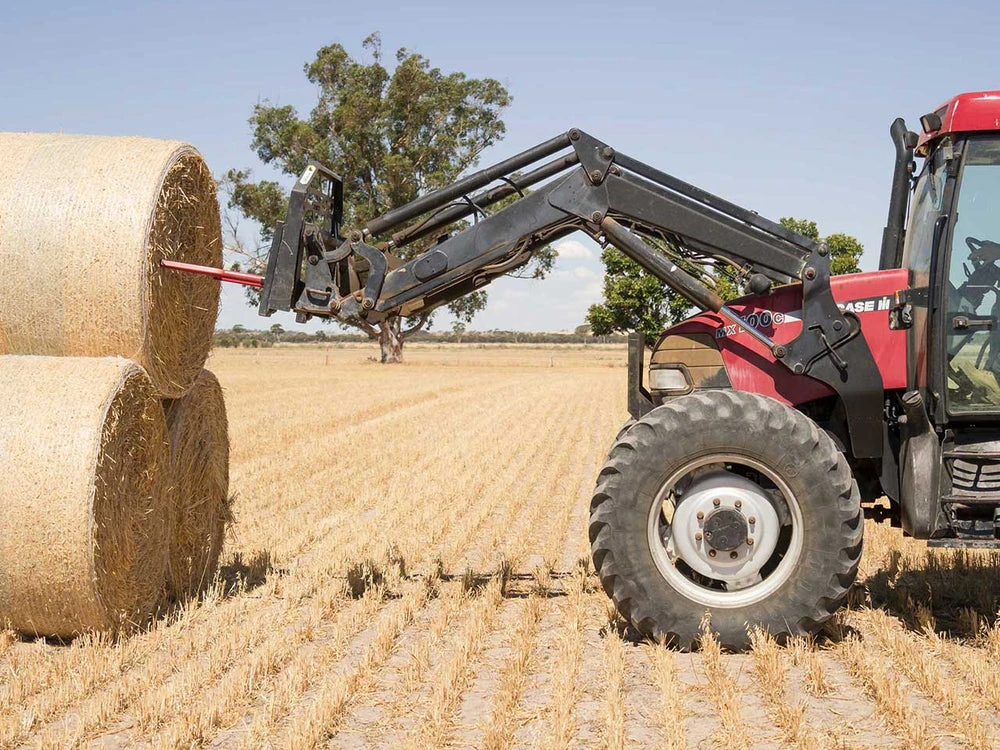

Bale handling with a loader-mounted bale spear
Bale handling with a loader-mounted bale spear
  • Bale stackingLifting and positioning suitable round or square bales.
  • Feeding operationsMoving hay or straw bales around the livestock yard.
Technical specifications

Models, dimensions and working requirements

Type

Dimension(LWH)/mm

Main Spear(La)/mm

Bracket Type

Weight/kg
JY-T-BS(36*1250)-1100-EURO

1326×1210×533

φ36×1250×2

EURO

69
Installation requirements

Confirm the tool fits your loader or tractor

Before ordering, send the machine identification and the connection, power and working information relevant to this product.

  1. Loader identification

    Provide loader make and model, attachment interface and the lifting chart for the intended working position.

  2. Attachment connection

    Match the actual Euro interface; compare SMS separately where a second mounting version is listed.

  3. Load and lifting geometry

    Include the load mass and dimensions, load centre, attachment weight and required lift height.

  4. Loader connection and load handling

    Check the fork, spear, hook or bucket geometry against the load and ensure clearance during lifting and discharge.

Product questions

Bale spear questions

Is a bale spear suitable for preserving plastic wrapping?

The spears penetrate the bale. For wrapped bales that must remain sealed, use an appropriate non-piercing bale grab.

What load information is needed to choose a loader attachment?

Include the load mass and dimensions, load centre, attachment weight and required lift height.

What should I check before installation?

Provide loader make and model, attachment interface and the lifting chart for the intended working position. Match the actual Euro interface; compare SMS separately where a second mounting version is listed.
