Pallet forks manufacturer product reference
Tractor Loaders & Handling ToolsAgricultural implement

Pallet forks

A floating pallet-fork attachment for a compatible tractor loader, with Euro and SMS mounting variants.

Product family
Tractor Loaders & Handling Tools
Models
2 configurations
Request a QuoteChat on WhatsApp
Product & applications

About the pallet forks

A floating pallet-fork attachment for a compatible tractor loader, with Euro and SMS mounting variants.

Features & benefits

01

Floating fork arrangement

The fork mounting allows movement within the specified frame arrangement during load handling.

02

Two mounting variants

Euro and SMS frames have separate dimensions and attachment weights.

03

Upright tine storage

The tines can be secured upright when required by the attachment arrangement.

Typical applications

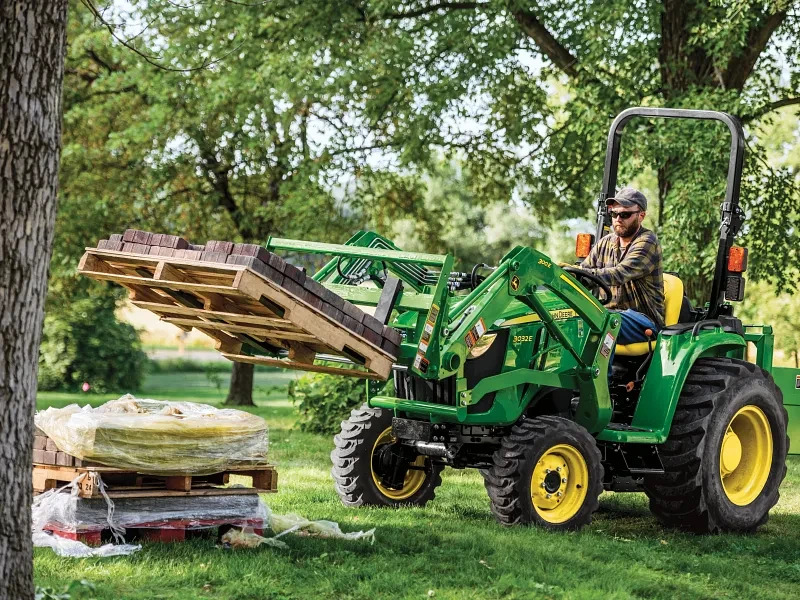

Pallet handling with tractor-loader forks
Pallet handling with tractor-loader forks
  • Pallet handlingLifting suitable palletised farm supplies.
  • Yard loadingMoving packaged materials around accessible farm and storage yards.
Technical specifications

Models, dimensions and working requirements

Type

Class

SWL/kg

Dimension(LWH)/mm

Bracket Type

Weight/kg
JY-T-SFF(100*35*1200)-1200-2T-SMS-C

2A

2000

1416x1297x520

SMS

155
JY-T-SFF(100*35*1200)-1200-2T-EURO

2A

2000

1385x1297x476

EURO

153
Installation requirements

Confirm the tool fits your loader or tractor

Before ordering, send the machine identification and the connection, power and working information relevant to this product.

  1. Loader identification

    Provide loader make and model, attachment interface and the lifting chart for the intended working position.

  2. Attachment connection

    Match the actual Euro interface; compare SMS separately where a second mounting version is listed.

  3. Load and lifting geometry

    Include the load mass and dimensions, load centre, attachment weight and required lift height.

  4. Loader connection and load handling

    Check the fork, spear, hook or bucket geometry against the load and ensure clearance during lifting and discharge.

Product questions

Pallet forks questions

Does a 2,000 kg fork rating mean my tractor can lift that load?

No. The loader lifting chart, load centre, attachment mass and operating geometry also limit the permitted load.

What load information is needed to choose a loader attachment?

Include the load mass and dimensions, load centre, attachment weight and required lift height.

What should I check before installation?

Provide loader make and model, attachment interface and the lifting chart for the intended working position. Match the actual Euro interface; compare SMS separately where a second mounting version is listed.
