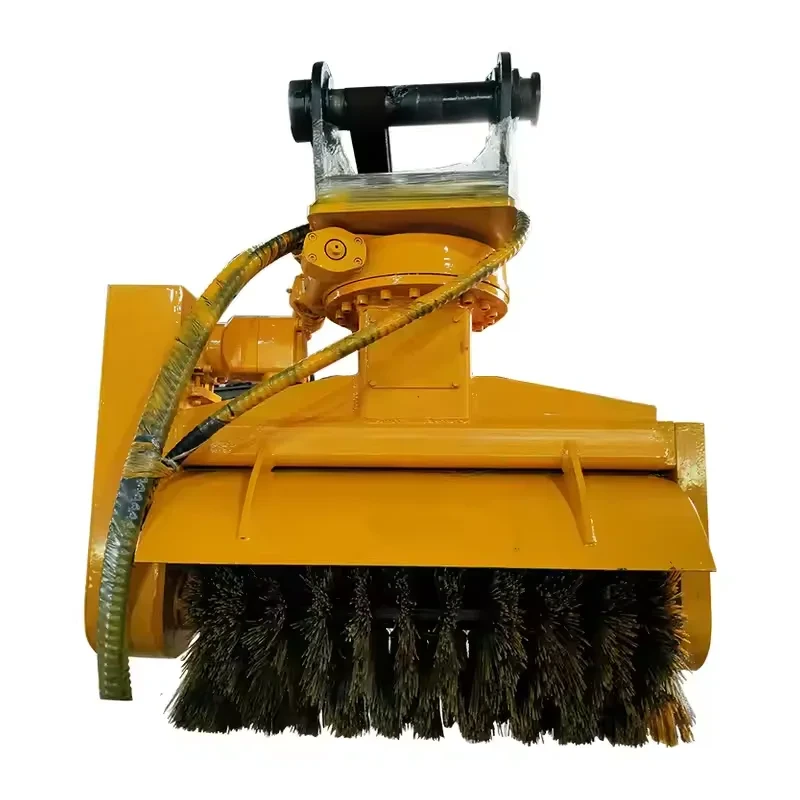

Powered brush rotation
Hydraulic power turns the brush for surface sweeping.
Forestry & Site MaintenanceHydraulic rotary sweeping · Excavator attachment
Excavator sweeper

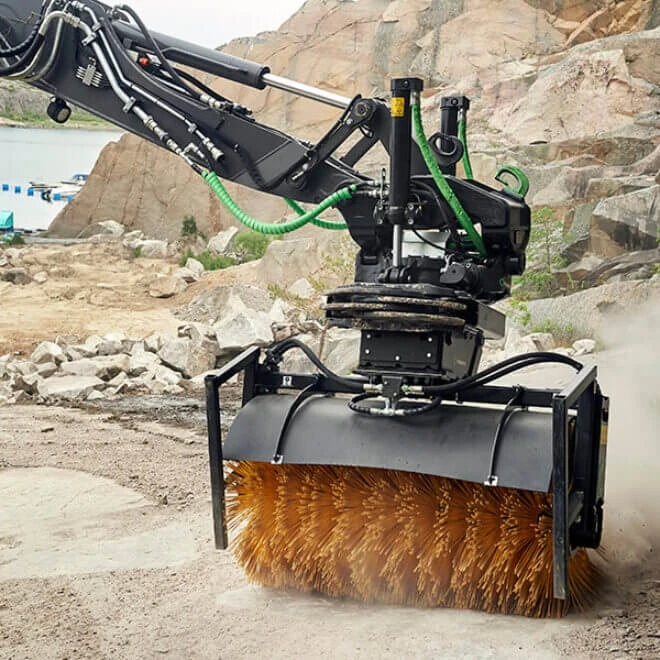

A hydraulic rotary brush for sweeping roads, work sites and industrial surfaces. The brush moves loose debris; an angled head directs the swept material to one side.
- Recommended machine classes
- 4–18 t, model-specific
- Working width range
- 150–300 cm
- Hydraulic pressure
- 160–230 bar
Product & applications
About the excavator sweeper
A hydraulic rotary brush for sweeping roads, work sites and industrial surfaces. The brush moves loose debris; an angled head directs the swept material to one side.
Features & benefits
Directional sweeping
The angled head directs loose material into a windrow.
Water-spray configurations
The documented water-tank configurations support dust suppression where fitted.
Typical applications
- Road and work-site cleanupSweep suitable loose dust, sand and debris from paved working surfaces.
- Industrial yardsMaintain eligible access lanes and hard-standing areas.
- Seasonal surface maintenanceSweep suitable snow and loose seasonal material with the correct brush.
Rotary sweeper model specifications
| Parameter | JY-TG-RB1500 | JY-TG-RB1900 | JY-TG-RB2000 | JY-TG-RB2200 | JY-TG-RB2500 | JY-TG-RB3000 |
|---|---|---|---|---|---|---|
| Working Width | 150 cm (59 in) | 190 cm (75 in) | 220 cm (87 in) | 220 cm (87 in) | 250 cm (98 in) | 300 cm (118 in) |
| Full Width | 180 cm (71 in) | 216 cm (85 in) | 253 cm (100 in) | 253 cm (100 in) | 280 cm (110 in) | 300 cm (118 in) |
| Max. Height | 150 cm (59 in) | 150 cm (59 in) | 150 cm (59 in) | 177 cm (70 in) | 177 cm (70 in) | 177 cm (70 in) |
| Depth | 207 cm (81 in) | 207 cm (81 in) | 207 cm (81 in) | 245 cm (96 in) | 245 cm (96 in) | 245 cm (96 in) |
| Brush Drum Diameter | 70 cm (28 in) | 70 cm (28 in) | 70 cm (28 in) | 90 cm (35 in) | 120 cm (47 in) | 120 cm (47 in) |
| Machine Recommendation | 4–7 ton | 5–8 ton | 7–13 ton | 9–16 ton | 10–18 ton | 10–18 ton |
| Empty Weight | 800 kg (1764 lb) | 900 kg (1984 lb) | 1000 kg (2205 lb) | 1500 kg (3307 lb) | 1800 kg (3968 lb) | 1800 kg (3968 lb) |
| Hydraulic Pressure | 160–230 bar | 160–230 bar | 160–230 bar | 160–230 bar | 160–230 bar | 160–230 bar |
| Brush Rotation (max) | 250–300 rpm | 250–300 rpm | 250–300 rpm | 250–300 rpm | 250–300 rpm | 250–300 rpm |
| Water Tank Volume | 250 L (66 gal) | 250 L (66 gal) | 330 L (87 gal) | 330 L (87 gal) | 350 L (92 gal) | 350 L (92 gal) |
Installation requirements
Confirm the attachment fits your excavator
Before ordering, send the machine identification and the connection, power and working information relevant to this product.
- D1 / D2
- Both pin diameters
- C
- Pin centre distance
- W
- Clear mounting width
Machine and loaded attachment
Check attachment mass, mounting position and lift capacity, including any water carried.
Excavator mounting
Measure pins, centres and clear mounting width; confirm any coupler or rotating connection.
Brush circuit
Confirm the selected 160–230 bar circuit, continuous flow, cooling, return and hoses. The table does not specify flow.
Surface and water system
Select brush material for the surface. Confirm the actual tank, spray supply and angle-control configuration.
Product questions
Excavator sweeper questions
Does it collect debris into a hopper?
This page describes brush sweeping and windrowing. Do not assume a collecting hopper is included.
Is it a static push broom?
No. This is hydraulically powered; a static push broom uses the carrier’s movement.
Is a water tank fitted to every pictured version?
The specifications list tank configurations separately. Confirm the actual supplied assembly.
How is required flow selected?
The table gives pressure and brush speed, but no flow. Confirm the specified motor and drive configuration.
