Concrete-crushing teeth
The jaw teeth reduce concrete and expose reinforcement for separation and recycling.
← Demolition & CuttingJY-FP series · Excavator attachment

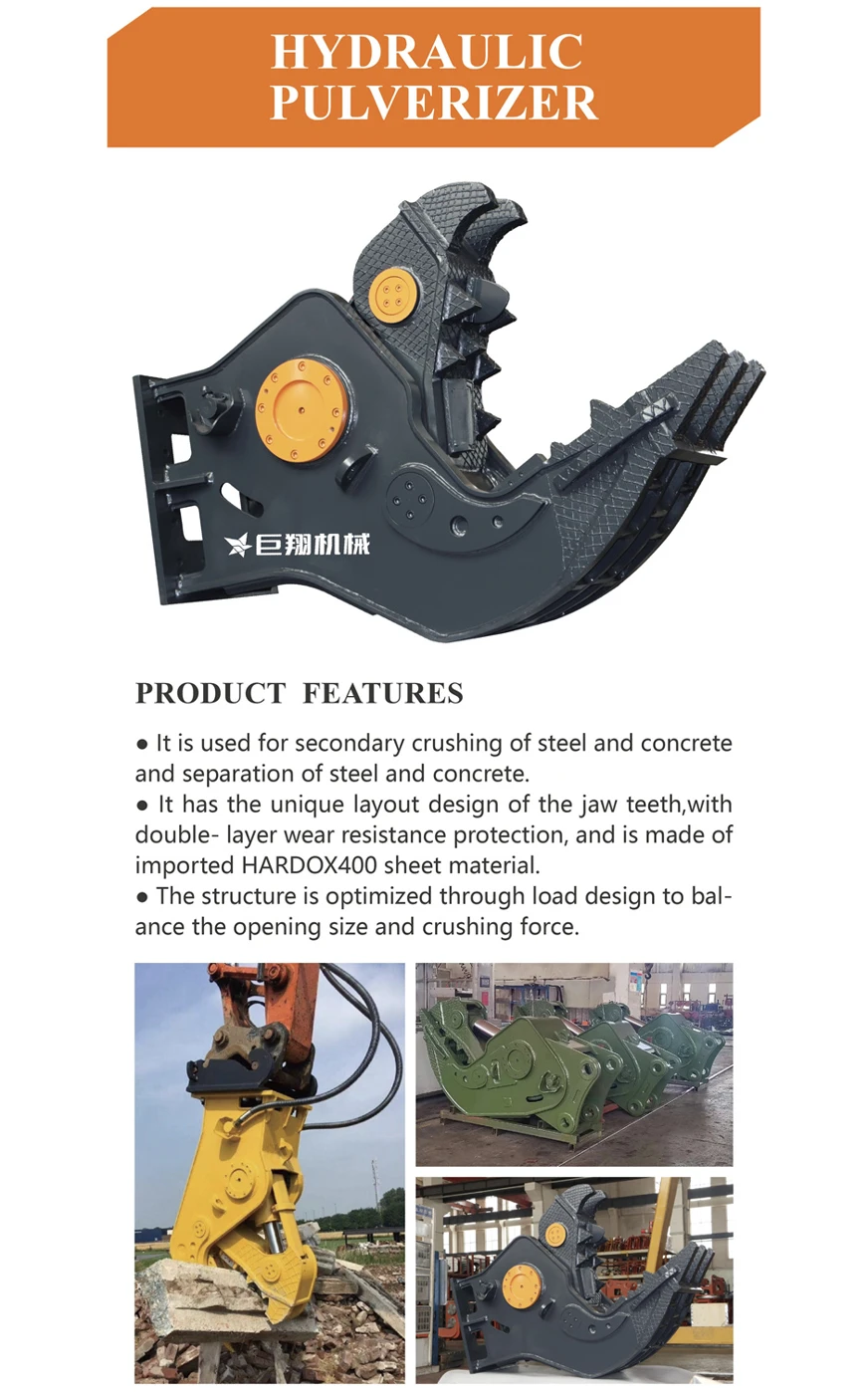

Fixed pulverizer
A fixed-jaw hydraulic pulverizer for reducing concrete and separating reinforcing steel during demolition and recycling. Compare jaw opening, blade length and hydraulic requirements for the working material.
- Primary work
- Concrete recycling
- Model range
- 6 configurations
Product & applications
About the fixed pulverizer
A fixed-jaw hydraulic pulverizer for reducing concrete and separating reinforcing steel during demolition and recycling. Compare jaw opening, blade length and hydraulic requirements for the working material.
Features & benefits
Reversible cutting blades
Rectangular blades cut suitable exposed reinforcing rods and can be reversed or replaced during maintenance.
Cylinder and speed valve
The trunnion-supported cylinder and speed-valve arrangement operate the jaws through their crushing movement.
Typical applications
- Concrete recyclingReduce concrete debris before sorting and recycling.
- Rebar separationBreak concrete away from reinforcing steel.
- Secondary demolitionProcess concrete sections after initial demolition.
Compare dimensions and hydraulic requirements
Check attachment weight, machine size and installation requirements together.
| Specification | Unit | JY-FP-02 | JY-FP-04 | JY-FP-06 | JY-FP-08 | JY-FP-08S | JY-FP-10 |
|---|---|---|---|---|---|---|---|
| Excavator operating weight | t | 3-5t | 6-9t | 10-15t | 18-25t | 20-30t | 30-40t |
| Attachment weight | kg | 270 | 480 | 880 | 1600 | 1980 | 2700 |
| Maximum jaw opening | mm | 420 | 600 | 750 | 860 | 900 | 1100 |
| Cutting blade length | mm | 75 | 95 | 112 | 180 | 180 | 360 |
| Working pressure | MPa | 24 | 24 | 31 | 32 | 32 | 32 |
| Hydraulic oil flow | L/min | 80-120 | 100-140 | 120-180 | 180-250 | 180-250 | 200-300 |
| Crushing force | kN | 170 | 260 | 470 | 994 | 994 | 1350 |
On smaller screens, swipe the table sideways to compare every model.
Installation requirements
Confirm the attachment fits your excavator
Before ordering, send the machine identification and the connection, power and working information relevant to this product.
- D1 / D2
- Both pin diameters
- C
- Pin centre distance
- W
- Clear mounting width
Machine identification
Excavator model and operating weight
Mounting dimensions
Mounting pin diameter, centres and mounting width
Hydraulic supply
Hydraulic flow, pressure and return circuit
Working material
Concrete dimensions and reinforcing steel content
Lifting capacity
Carrier lifting capacity at the working radius
Product questions
Fixed pulverizer questions
Are cutting, pulverising and crushing the same task?
No. Identify the material and the intended process first. Steel cutting, concrete processing and bucket crushing use different working mechanisms.
What material and hydraulic information should I send?
Include material type and dimensions, the machine model and available hydraulic supply. Confirm opening, closing and rotation requirements where applicable.
How does it differ from a rotating pulveriser?
A fixed type does not offer powered jaw positioning by rotation. Compare the access and concrete-processing task before choosing the mechanism.
What material is it intended to process?
Its principal task is concrete reduction and reinforcement separation. A steel shear or crusher bucket performs a different task.
