Offset mower on a white background
Mowers & MulchersAgricultural implement

Offset mower

A PTO-driven flail mower with hydraulic positioning for cutting grass, suitable light brush and pruning residue alongside the tractor, on verges and around field boundaries.

Product family
Mowers & Mulchers
Selection
Working size, tractor and connection
Request a QuoteChat on WhatsApp
Product & applications

About the offset mower

A PTO-driven flail mower with hydraulic positioning for cutting grass, suitable light brush and pruning residue alongside the tractor, on verges and around field boundaries.

Features & benefits

01

Flail cutting rotor

Hammer flails or the specified Y-blades cut suitable grass, light vegetation and pruning residue.

02

Hydraulic positioning

The linkage positions the mowing head in-line or beside the tractor for field-edge and verge work.

03

Rear roller and height adjustment

The rear roller and adjustable side skids support the mowing head and its cutting-height setting.

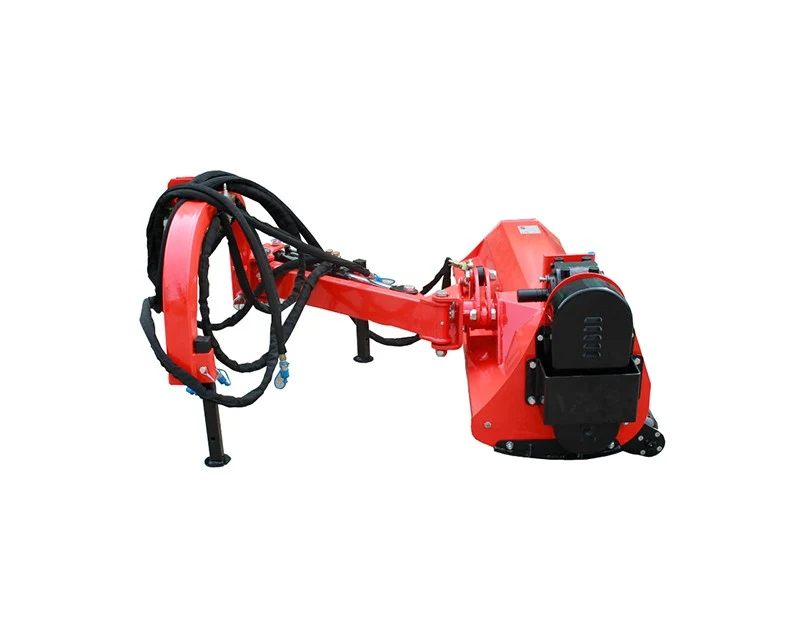

Offset flail mower linkage and cutting head viewed from the side
Positioning linkage and cutting head

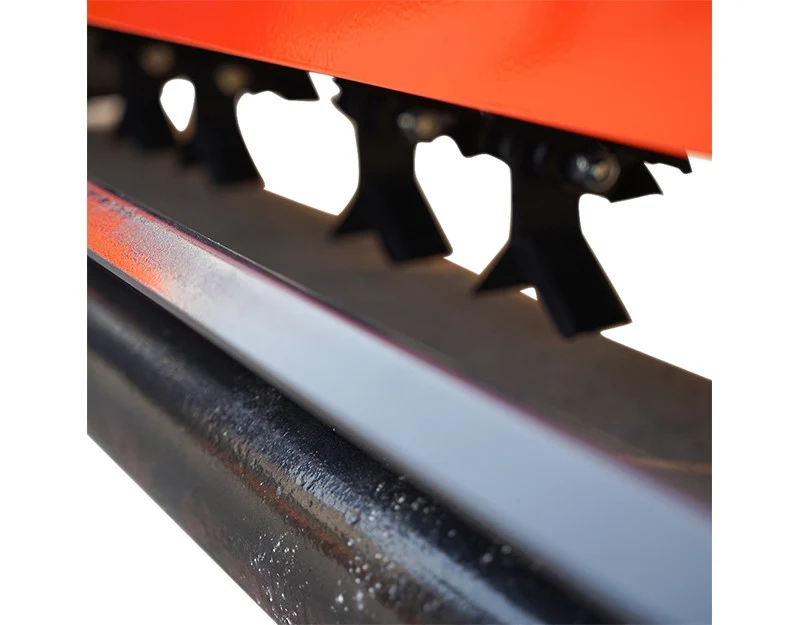

Hammer flails and rear roller on the AGL mowing head
Hammer flails and rear roller

Typical applications

  • Roadside and green-area maintenanceCut grass alongside the tractor on accessible road edges, gardens and maintained green areas.
  • Ditches and watercourse banksReach suitable vegetation along ditches and banks with the offset head, within the machine’s permitted positioning range.
  • Light pruning and vegetable residueMulch suitable vegetable residue, bushes and pruning material up to the AGL family’s stated 2 cm diameter limit. This is not a heavy forestry mulcher.
Technical specifications

Compare working size and tractor requirements

Compare the working dimensions, implement weight and stated tractor requirements for each configuration.

ModelWorking widthHammer flailsY bladesDrive beltsPTO speedTractor powerABCDEWeight

mm

No.

PTO

Min

Max

mm

Kg

JY-AGL105

1000

16

32

3

540
r/min

18

35

1660

1510

1240

750

1260

302

JY-AGL125

1200

20

40

3

20

40

1860

1440

317

JY-AGL145

1400

24

48

3

30

50

2060

1640

334

JY-AGL165

1600

28

56

3

30

50

2260

1840

349

JY-AGL185

1800

32

64

3

45

60

2460

2040

379

Installation requirements

Confirm the implement fits your tractor

Before ordering, send the machine identification and the connection, power and working information relevant to this product.

  1. Tractor and lift

    Check the selected AGL model’s tractor-power range and weight, including the offset position.

  2. Hitch and PTO

    Match the actual hitch category, specified PTO speed and guarded driveline.

  3. Positioning hydraulics

    Confirm the required auxiliary controls for offset and head movement.

  4. Vegetation and reach

    Describe vegetation, working width, banks and obstructions; check movement clearance.

This product uses a PTO-driven working mechanism. Confirm the specified PTO speed and driveline connection, and keep driveline guards in place.

Product questions

Offset mower questions

Is PTO power enough to confirm suitability?

No. The offset positioning functions also need the specified hydraulic controls, and the tractor must lift the implement throughout its permitted movement.

Does “offset” mean it is a boom mower?

No. The AGL-series offset mechanism works beside the tractor. A long articulated boom mower is a different product type.

What connection information should I provide?

Send the tractor make and model, hitch category and lifting capacity, plus the actual mounting arrangement.

Does this product require PTO power?

Yes. Check the specified PTO speed, available PTO power and driveline arrangement.
