Vertical-axis cutting blades
The blades rotate beneath the deck to cut grass across the selected working width.
Mowers & MulchersAgricultural implement
Rotary cutter

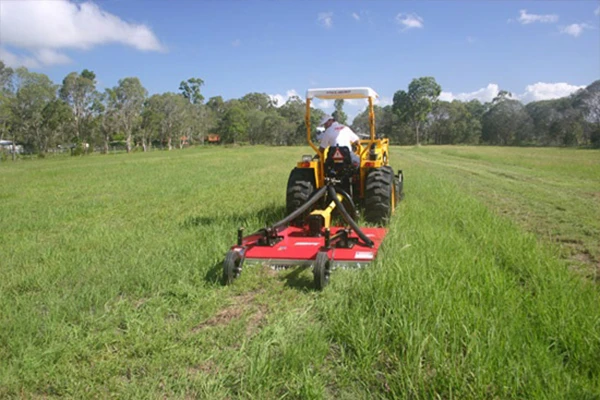

A tractor-mounted cutting deck with vertical-axis blades for cutting grass and suitable light vegetation in fields and maintained open areas.
- Product family
- Mowers & Mulchers
- Selection
- Working size, tractor and connection
Product & applications
About the rotary cutter
A tractor-mounted, vertical-axis grass cutter with rear discharge for grass maintenance in gardens, parks, green areas and orchards. The HM configurations use PTO drive and model-specific working widths.
Features & benefits
Rear discharge
The HM layout releases cut grass behind the deck during operation.
PTO gearbox drive
The gearbox transfers tractor PTO power to the vertical-axis cutting blades.
Typical applications
- Gardens and green areasCut suitable grass on smooth, accessible maintained ground.
- Parks and sports areasMaintain open grass areas with the model-specific cutting width and height.
- Orchard grass maintenanceCut accessible grass between orchard rows, allowing for tractor and deck clearance.
Compare working size and tractor requirements
Compare the working dimensions, implement weight and stated tractor requirements for each configuration.
| Model | Working width | Blade count | PTO speed | Gearbox rating | Cutting arrangement | Tractor power | A | B | C | Weight | |
mm | No. | PTO | HP | No. | Min | Max | mm | Kg | |||
| JY-HM3FT | 1030 | 2 | 540 r/min | 40 | single | 20 | 30 | 1530 | 1230 | 920 | 500 |
| JY-HM4FT | 1180 | 2 | 40 | single | 20 | 35 | 1830 | 1530 | 920 | 545 | |
| JY-HM5FT | 1484 | 2 | 40 | single | 20 | 35 | 2330 | 1730 | 920 | 577 | |
| JY-HM6FT | 1789 | 2 | 75 | single | 35 | 75 | 2530 | 1930 | 920 | 660 | |
| JY-HM7FT | 2094 | 2 | 100 | single | 50 | 100 | 2830 | 2230 | 920 | 660 | |
Installation requirements
Confirm the implement fits your tractor
Before ordering, send the machine identification and the connection, power and working information relevant to this product.
Tractor and lift
Compare the selected HM model’s tractor-power range and weight.
Hitch connection
Check the actual three-point hitch category and linkage geometry.
PTO and driveline
Use the specified PTO speed and gearbox rating; confirm shaft length and guards.
Grass and terrain
Check cutting width, cutting-height requirements, terrain and obstacles.
This product uses a PTO-driven working mechanism. Confirm the specified PTO speed and driveline connection, and keep driveline guards in place.
Product questions
Rotary cutter questions
How does it differ from a flail mower?
A rotary cutter uses blades rotating on a vertical axis beneath a deck. A flail mower uses multiple flails on a horizontal rotor.
How do I compare the rotary cutter models?
Use the model-specific cutting width, blade count, gearbox rating, PTO speed and tractor-power range. The stated ranges differ between models.
What connection information should I provide?
Send the tractor make and model, hitch category and lifting capacity, plus the actual mounting arrangement.
Does this product require PTO power?
Yes. Check the specified PTO speed, available PTO power and driveline arrangement.
