Post-hole digger on a white background
Grading, Drainage & LandscapingAgricultural implement

Post-hole digger

A three-point-mounted, PTO-driven auger for drilling planting and fence-post holes. The gearbox turns an interchangeable auger selected for the hole diameter and ground conditions.

Product family
Grading, Drainage & Landscaping
Selection
Working size, tractor and connection
Request a QuoteChat on WhatsApp
Product & applications

About the post-hole digger

A three-point-mounted, PTO-driven auger for drilling planting and fence-post holes. The gearbox turns an interchangeable auger selected for the hole diameter and ground conditions.

Features & benefits

01

PTO-driven auger

The PTO shaft transfers tractor power through a gearbox to turn the auger and cut the soil.

02

Reinforced tubular frame

A tubular steel frame with a strengthening ridge supports the boom and gearbox through a Category I or II three-point connection.

03

Interchangeable augers

Different auger sizes allow the hole diameter to suit the post or planting task. This series has no hydraulic down-pressure function.

Typical applications

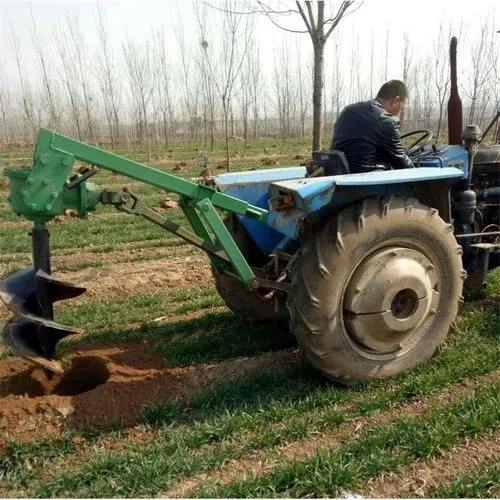

Post-hole drilling with a tractor-mounted auger
Post-hole drilling with a tractor-mounted auger
  • Sapling plantingPrepare planting holes with a compatible auger in suitable soil.
  • Farm fencingDrill holes for farm posts using an auger diameter suited to the post installation.
  • Small-acreage ground workPrepare repeatable earth holes on small farms and accessible land-management sites.
Technical specifications

Compare working size and tractor requirements

Compare the working dimensions, implement weight and stated tractor requirements for each configuration.

Model

 JY-HDGL30.A/JY-HDGL50.A

Suited to

25-60 hp Tractors

3-point Linkage

Cat.I or II

Length

1770mm

Width

790mm

Weight

135kg

Boom size

100×100mm

Gearbox

35HP/50HP

Hydraulic Down

No

PTO Safety

Yes-Protective Cover
Optional Augers Available A-4 Auger-H1200XDia.100mm-16kg
A-6 Auger-H1200XDia.155mm-19kg
A-8 Auger-H1200XDia.210mm-22kg
A-10 Auger-H1200XDia.270mm-28kg
A-12 Auger-H1200XDia.310mm-34kg
A-14 Auger-H1200XDia.360mm-41kg
A-16 Auger-H1200XDia.400mm-50kg
A-18 Auger-H1200XDia.430mm-62kg
Installation requirements

Confirm the implement fits your tractor

Before ordering, send the machine identification and the connection, power and working information relevant to this product.

  1. Three-point connection

    Check the Category I or II tractor linkage and lifting capacity for the selected model.

  2. PTO and gearbox

    Match PTO speed, guarded driveline and gearbox rating to the selected configuration.

  3. Auger connection

    Confirm the auger shaft connection, diameter, weight and drilling depth.

  4. Ground and working space

    Review stones, roots, underground services and clearance throughout the operating movement.

This product uses a PTO-driven working mechanism. Confirm the specified PTO speed and driveline connection, and keep driveline guards in place.

Product questions

Post-hole digger questions

Does this series have hydraulic down-pressure?

No. This series uses PTO-driven rotation without a hydraulic down-pressure function. A hydraulically driven or down-pressure digger is a different configuration.

How should I choose an auger size?

Choose the hole diameter for the post or planting task, then check the auger connection, gearbox rating and tractor limits. Available diameters and weights are listed in the specifications.

What connection information should I provide?

Send the tractor make and model, hitch category and lifting capacity, plus the actual mounting arrangement.

Does this product require PTO power?

Yes. Check the specified PTO speed, available PTO power and driveline arrangement.
