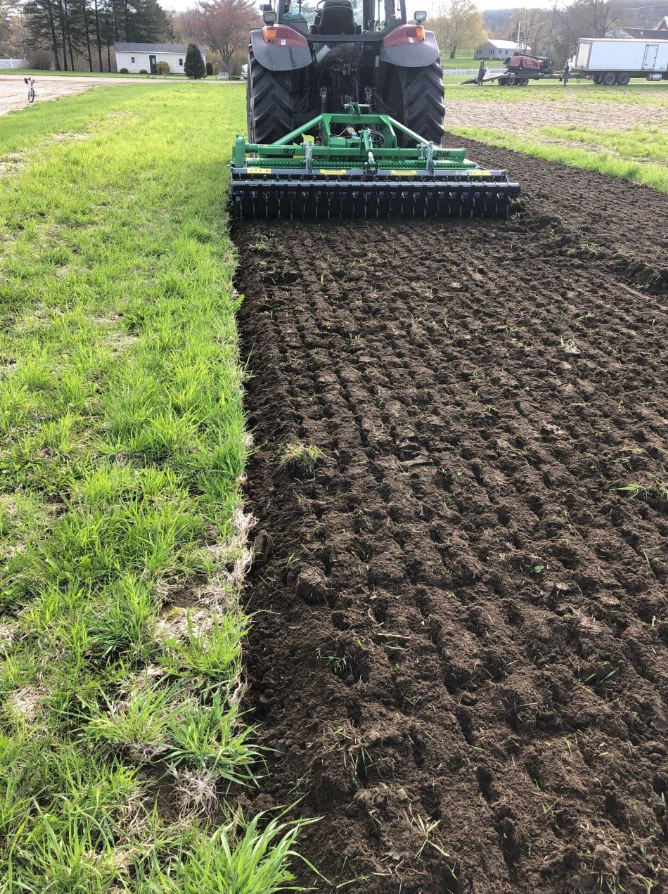

Reverse-working rotor
The soil-working mechanism separates coarser material during ground preparation.
Grading, Drainage & LandscapingAgricultural implement
Stone burier
A PTO-driven stone burier that prepares the upper soil layer and leaves finer soil above buried stones and debris.
- Product family
- Grading, Drainage & Landscaping
- Models
- 4 configurations
Product & applications
About the stone burier
A PTO-driven stone burier that prepares the upper soil layer and leaves finer soil above buried stones and debris.
Features & benefits
Rear finishing roller
The roller supports depth control and the prepared surface finish.
Model-specific working width
The four listed sizes have different widths, blade counts and implement weights.
Typical applications
- Ground preparationPreparing suitable ground before grass sowing or landscaping.
- Seedbed finishingLeaving a finer upper soil layer after burying coarser material.
Models, dimensions and working requirements
| Model | JY-LF-105 | JY-LF-125 | JY-LF-145 | JY-LF-165 |
| Tractor HP | 20-35HP | 25-40HP | 35-50HP | 35-50HP |
| Working Width | 950mm | 1250mm | 1450mm | 1650mm |
| Tilling Depth | 100-180mm | 100-180mm | 100-180mm | 100-180mm |
| Number of blades | 20 | 30 | 30 | 36 |
| Input Speed | 540 r/min | |||
| Rotor Speed | 208 r/min | |||
| Weight | 266kg | 288kg | 314kg | 336kg |
| Machine Dimension | 1320*1030*800mm | 1520*1030*800mm | 1620*1030*800mm | 1720x1030x800mm |
| Roller dimension | 1320*420*420mm | 1520*420*420mm | 1620*420*420mm | 1720x420x420mm |
Installation requirements
Confirm the implement fits your tractor
Before ordering, send the machine identification and the connection, power and working information relevant to this product.
Tractor power and lift
Compare the selected model’s stated tractor-power range, implement weight and rear lifting capacity.
Rear mounting
Match the actual three-point hitch category and connection geometry.
PTO and driveline
Check the stated input speed, PTO shaft connection, guarded driveline and clearance throughout the working movement.
Ground and working width
Describe soil, stone content, required depth and field access; this implement buries material rather than collecting it.
Product questions
Stone burier questions
Does it collect stones into a hopper?
No. A stone burier places coarser material beneath the finer surface layer. A stone picker collects stones into a separate storage body.
What should I check at the PTO connection?
Check the stated input speed, PTO shaft connection, guarded driveline and clearance throughout the working movement.
What should I check before installation?
Compare the selected model’s stated tractor-power range, implement weight and rear lifting capacity. Match the actual three-point hitch category and connection geometry.
