Power harrow manufacturer product reference
Tillage & Soil PreparationAgricultural implement

Power harrow

A PTO-driven vertical-rotor power harrow for breaking clods, levelling soil and preparing a seedbed.

Product family
Tillage & Soil Preparation
Models
4 configurations
Request a QuoteChat on WhatsApp
Product & applications

About the power harrow

A PTO-driven vertical-rotor power harrow for breaking clods, levelling soil and preparing a seedbed.

Features & benefits

01

Vertical soil-working rotors

Vertical-axis rotors break clods across the working width without using a horizontal tilling shaft.

02

Alloy-steel transmission and tines

High-strength alloy-steel gears, shafts and tines support the soil-working mechanism.

03

Roller and levelling board

A rear compaction roller and levelling board finish the worked surface.

04

Overload-protected driveline

An overload-protection transmission shaft limits overload impact on the drive system.

Typical applications

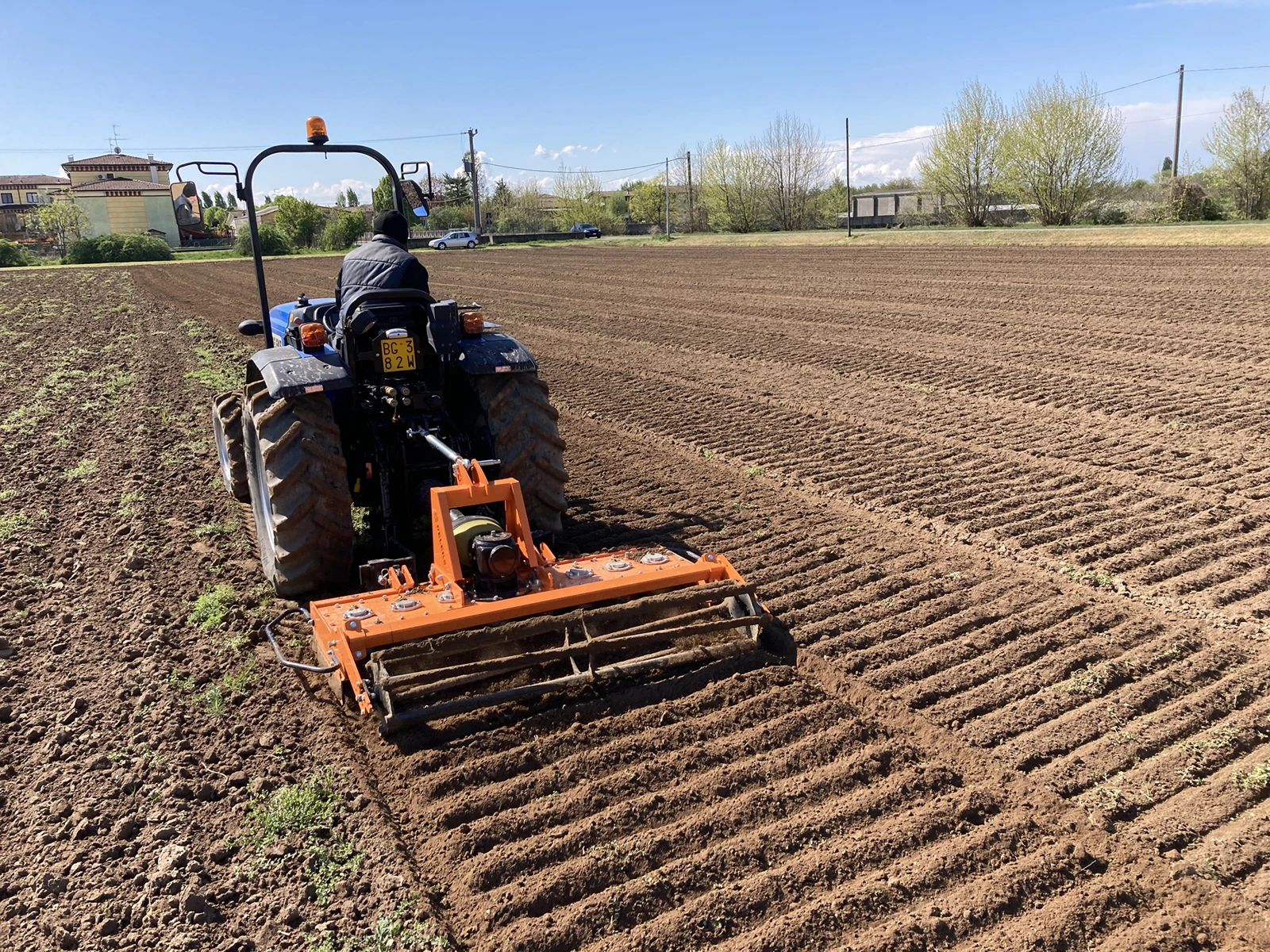

Seedbed preparation with a power harrow
Seedbed preparation with a power harrow
  • Seedbed preparationBreak clods, level and consolidate the cultivated surface in preparation for sowing.
  • Residue incorporationWork suitable surface straw into the cultivated soil through the vertical rotor action.
  • Combined tillage and sowingConnect a compatible seed drill to the multi-function frame where the full combination is approved for the tractor and operating setup.
Technical specifications

Models, dimensions and working requirements

Model JY-1BQ-2.5 JY-1BQ-3.0 JY-1BQ-3.5 JY-1BQ-4.0
Working width(mm) 2500 3000 3500 4000
Power (HP) 90-140 110--160 140-210 160-260
Weight without PTO (kg) 1500 1690 1960 2150
Tine Number(Unit) 20 24 28 32
Dimension (mm) 1450x2620x1240 1450x3120x1240 1450x3620x1240 1450x4120x1240
Installation requirements

Confirm the implement fits your tractor

Before ordering, send the machine identification and the connection, power and working information relevant to this product.

  1. Tractor power and rear lift

    Compare model-specific power, implement weight and tractor lifting capacity; the stated implement weight excludes the PTO component.

  2. Rear linkage

    Confirm the actual hitch category and working geometry; it is not specified in the table.

  3. PTO connection

    Confirm the PTO input unit, shaft connection, guards and overload-protection arrangement before installation.

  4. Soil and combined equipment

    Provide soil condition, working width and any planned seeder; check the complete combined mass and connection requirements.

Product questions

Power harrow questions

Is a power harrow the same as a rotary tiller?

No. This harrow uses vertical rotor action. A rotary tiller has a transverse horizontal tilling rotor.

What should I check at the PTO connection?

Confirm the PTO input unit, shaft connection, guards and overload-protection arrangement before installation.

What should I check before installation?

Compare model-specific power, implement weight and tractor lifting capacity; the stated implement weight excludes the PTO component. Confirm the actual hitch category and working geometry; it is not specified in the table.
