Seedbed cultivator manufacturer product reference
Tillage & Soil PreparationAgricultural implement

Seedbed cultivator

A spring-tine cultivator for loosening cultivated soil and preparing a seedbed without a PTO-driven rotor.

Product family
Tillage & Soil Preparation
Models
6 configurations
Request a QuoteChat on WhatsApp
Product & applications

About the seedbed cultivator

A spring-tine cultivator for loosening cultivated soil and preparing a seedbed without a PTO-driven rotor.

Features & benefits

01

Vibrating spring tines

Double-coil spring tines vibrate through the soil to loosen it without turning the soil layer over.

02

Clearance for stubble

Space between the tines and the raised frame allows surface residue to pass during stubble cultivation.

03

Three-point mounting

The mounted frame is raised through the tractor linkage at the end of a pass.

Typical applications

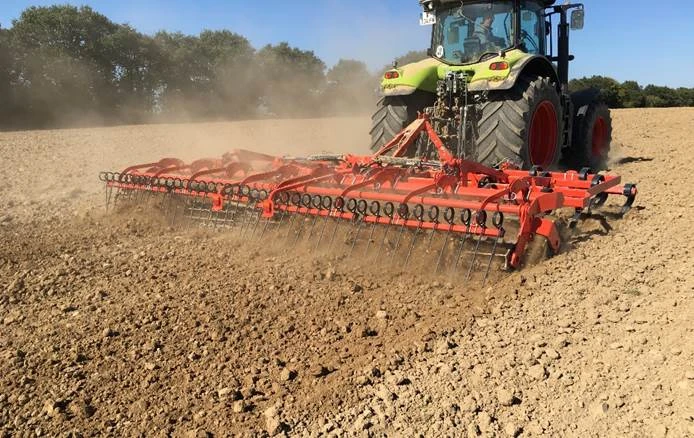

Seedbed preparation with a spring-tine cultivator
Seedbed preparation with a spring-tine cultivator
  • Seedbed preparationLoosen previously cultivated soil with vibrating spring tines before sowing.
  • Stubble cultivationWork suitable residue-bearing fields with the open tine arrangement. This implement loosens soil without mouldboard-style inversion.
Technical specifications

Models, dimensions and working requirements

ModelJY-LFSC-1.0JY-LFSC-1.4JY-LFSC-1.8JY-LFSC-2.2JY-LFSC-2.5JY-LFSC-3.0
Working Width1000mm1400mm1800mm2200mm2500mm3000mm
Working Depth100-200mm
Number of tines5pcs7pcs9pcs11pcs13pcs15pcs
Total Weight260kg320kg400kg490kg550kg640kg
LinkageStandard 3 point mounted
Tractor HP18-30HP30-40HP40-50HP50-70HP70-90HP100-120HP
Installation requirements

Confirm the implement fits your tractor

Before ordering, send the machine identification and the connection, power and working information relevant to this product.

  1. Tractor and traction

    Compare the model-specific tractor-power range, implement weight and the traction required in the actual soil.

  2. Rear mounting

    Match the actual rear linkage and lifting capacity to the chosen frame and working width.

  3. Working geometry

    Check working width, cultivation depth, tine layout and turning space at the field ends.

  4. Soil and field conditions

    Describe soil texture, moisture, residue and field access. This family works through tractor movement without a PTO-driven rotor.

Product questions

Seedbed cultivator questions

Does it need a PTO shaft?

No. The tines work through forward tractor movement. There is no powered tilling rotor in this family.

How should I choose the working width and cultivation depth?

Check working width, cultivation depth, tine layout and turning space at the field ends.

What should I check before installation?

Compare the model-specific tractor-power range, implement weight and the traction required in the actual soil. Match the actual rear linkage and lifting capacity to the chosen frame and working width.
