Tilting bucket

A hydraulically tilting bucket for shaping slopes and finishing surfaces at an angle. Selection includes the tilt mechanism, hydraulic supply, hose routing and clearances at the mounting connection.

Adjustable-angle grading

Working purpose: Slope shaping and angled grading
Material: Soil and loose finishing material
Configuration: Width, mounting and edge options

Request this product Discuss on WhatsApp

Product & applications

About the tilting bucket

A hydraulically tilting bucket for shaping slopes and finishing surfaces at an angle. Selection includes the tilt mechanism, hydraulic supply, hose routing and clearances at the mounting connection.

Features & benefits

Hydraulic tilt

The powered pivot angles the cutting edge for slope shaping, ditch profiles and landscape finishing.

Cylinder and spill guards

Guards protect the cylinder rod and hose fittings from contact during material handling.

Tilt-speed adjustment

Flow-control valves allow the tilting speed to be adjusted for the work.

Serviceable cutting edge

The reversible bolt-on cutting edge and wear pads protect working surfaces and support replacement.

Protected pivot components

High-tensile pivot pins and hard inserts provide the pivot connection with wear protection.

Mechanical travel stops

Dual mechanical stops limit tilt travel and protect the cylinders at the end of movement.

Flat-bottom support

The bucket has a flat bottom so it can stand on the ground.

Typical applications

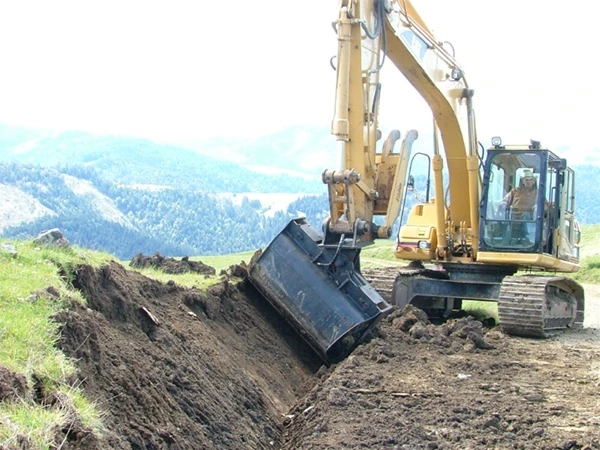

Hydraulically tilted bucket shaping a slope — Slope shaping with a tilting bucket

Slope gradingAngle the cutting edge to shape and finish accessible banks and slopes.
Ditch cleaningAdjust the bucket angle to follow drainage profiles during clean-up.
Landscape finishingTrim and level soil surfaces around terrain changes without repeatedly repositioning the excavator.

Dimensions & specifications

Product Specifications

Compare the specification rows and include your required model or dimensions in the product enquiry below.

Scroll the table horizontally to view every specification →

Tilting bucket — dimensions and configuration
Ton Range	Model	Width (mm)	Bore(mm)	Bucket capacity(m³)	Weight(kg)	Remark
0T-3T	JY-TB-01	900	50	0.12	270	single cylinder
3T-5T	JY-TB-02	1050	50	0.15	320	single cylinder
4T-6T	JY-TB-03	1200	50	0.2	420	double cylinders and double changeable cutting edges
8T-12T	JY-TB-04	1500	63	0.3	630	double cylinders and double changeable cutting edges
12T-16T	JY-TB-05	1500	63	0.55	700	double cylinders and double changeable cutting edges
12T-16T	JY-TB-06	1600	63	0.57	820	double cylinders and double changeable cutting edges
18T-23T	JY-TB-07	1800	80	0.9	895	double cylinders and double changeable cutting edges
18T-23T	JY-TB-08	2000	80	1.25	1280	double cylinders and double changeable cutting edges
23T-29T	JY-TB-09	2000	80	1.51	1390	double cylinders and double changeable cutting edges
30T-36T	JY-TB-10	2200	100	1.6	1950	double cylinders and double changeable cutting edges
30T-36T	JY-TB-11	2400	100	1.9	2100	double cylinders and double changeable cutting edges

Available options

Tilt-speed control: The specifications list optional valves for adjusting tilt speed to the working requirements.

Installation requirements

Confirm this bucket fits your excavator

Send your excavator make, model and operating weight, together with clear photos or a drawing of the mounting interface.

Pin diameter D1 and D2 and centre-to-centre distance C — Generic pin-on interface. Check the selected mounting method and the actual machine drawing.

Clear mounting width W measured between the inner mounting faces — Generic pin-on interface. Check the selected mounting method and the actual machine drawing.

Machine identification — excavator make, model and operating weight.
Pin dimensions — measure both pin diameters and the centre-to-centre distance in millimetres.
Mounting interface — inside width between mounting ears; pin-on or quick-coupler connection.
Working clearance — check bucket width, capacity and clearance throughout the operating movement.
Hydraulic supply — confirm the flow, pressure and circuit connections required by the powered mechanism.

Using a quick coupler? Include its make, model and interface drawing. Confirm dimensions against the actual machine and attachment drawing.

Product questions

Tilting bucket questions

What hydraulic details should I provide?

Send the excavator model, available auxiliary flow and pressure, connection type and existing hydraulic circuit information. The required supply is checked for the selected configuration.

Is a tilting bucket a tiltrotator?

No. This bucket tilts side to side. A tiltrotator is a separate mounting device that combines tilt and rotation.

How do I choose the working width or capacity?

Match the required width or capacity to the work area, material and excavator limits. Check attachment weight and operating clearance alongside the dimensions.

Which mounting information should accompany an enquiry?

Include the machine make and model, both pin diameters, pin centre distance and clear inside mounting width, or the specified quick-coupler interface drawing.
