Trapezoidal ditch bucket

A shaped bucket with a wider top and narrower base for forming trapezoidal drainage channels. Specify the top width, base width and channel depth together.

Drainage channel profiles

Working purpose: Forming trapezoidal drainage channels
Material: Soil, sand and channel excavation material
Configuration: Width, mounting and edge options

Request this product Discuss on WhatsApp

Product & applications

About the trapezoidal ditch bucket

A shaped bucket with a wider top and narrower base for forming trapezoidal drainage channels. Specify the top width, base width and channel depth together.

Features & benefits

Shaped channel profile

A wide top and narrower base form the sloping sides of a trapezoidal channel.

Profile-forming cutting edge

The bottom and angled side edges cut the channel profile together.

Alternative edge arrangements

Blade and toothed versions suit different ground conditions.

Typical applications

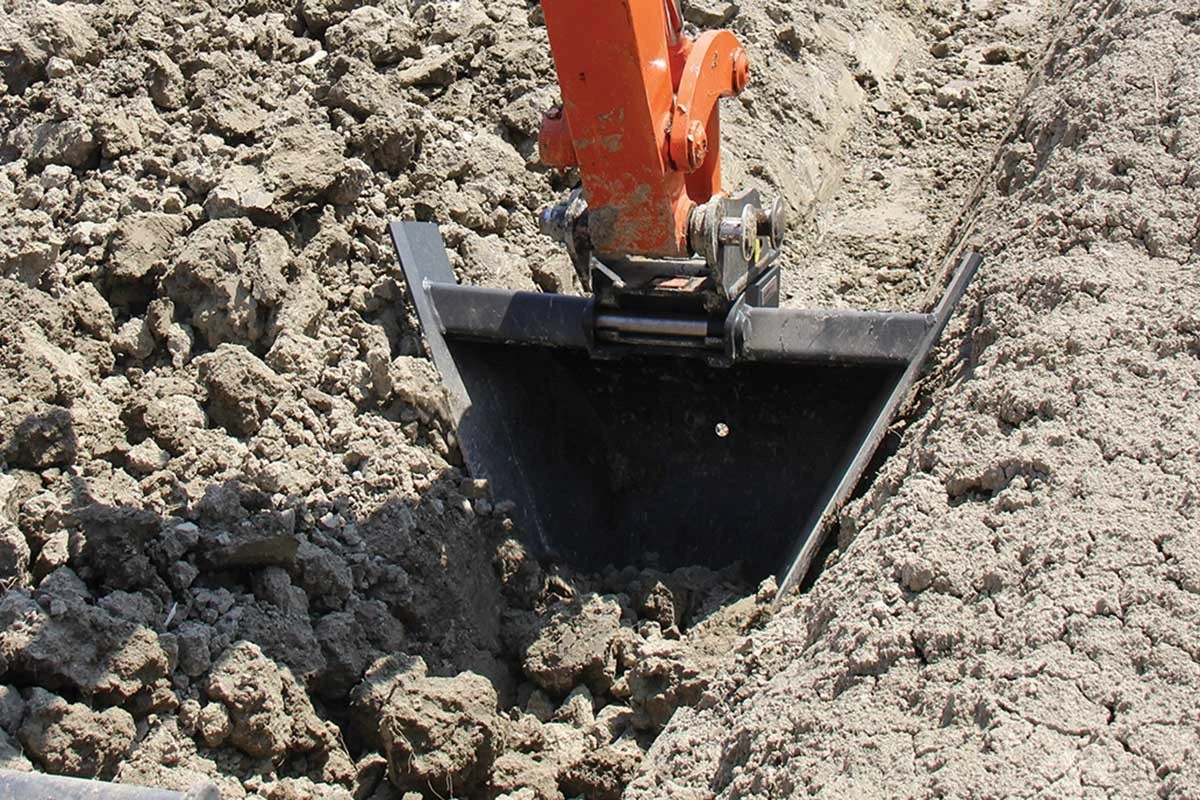

V-shaped ditch excavation with a trapezoidal bucket

Drainage and irrigation channelsForm a channel with a wider top and narrower base using the corresponding trapezoidal profile.
Roadside waterwaysExcavate drainage ditches along road and infrastructure projects.
Forestry drainageShape accessible drainage channels in forestry and open-field projects; match the side angle and cutting edge to the required ditch.

Dimensions & specifications

Product Specifications

Compare the specification rows and include your required model or dimensions in the product enquiry below.

Scroll the table horizontally to view every specification →

Trapezoidal ditch bucket — dimensions and configuration
Model	Excavator weight	Bucket Size	Top (overall) width/In	Base width/In	Weight/Lbs	Top (overall) width/mm	Base width/mm	Weight/kg
JY-TR-01	8-12 Ton	48 x 12	48	12	739	1,219	305	335
JY-TR-02	8-12 Ton	54 x 18	54	18	787	1,372	457	357
JY-TR-03	13-20 Ton	54 x 12	54	12	983	1,372	305	446
JY-TR-04	13-20 Ton	60 x 18	60	18	1,045	1,524	457	474
JY-TR-05	13-20 Ton	66 x 24	66	24	1,217	1,676	610	552
JY-TR-06	21-25Ton	63 x 20	63	20	1,371	1,600	559	622
JY-TR-07	21-25Ton	69 x 24	69	24	1,565	1,753	610	710
JY-TR-08	26-30Ton	66 x 20	66	20	1,704	1,676	508	773
JY-TR-09	26-30Ton	72 x 24	72	24	1,907	1,829	610	865
JY-TR-10	31-40Ton	74 x 20	74	20	2,513	1,880	508	1,140
JY-TR-11	31-40Ton	80 x 24	80	24	2,740	2,032	610	1,243

Available options

Blade or toothed edge: Single- or double-blade and toothed versions are described in the manufacturer source.

Installation requirements

Confirm this bucket fits your excavator

Send your excavator make, model and operating weight, together with clear photos or a drawing of the mounting interface.

Pin diameter D1 and D2 and centre-to-centre distance C — Generic pin-on interface. Check the selected mounting method and the actual machine drawing.

Clear mounting width W measured between the inner mounting faces — Generic pin-on interface. Check the selected mounting method and the actual machine drawing.

Machine identification — excavator make, model and operating weight.
Pin dimensions — measure both pin diameters and the centre-to-centre distance in millimetres.
Mounting interface — inside width between mounting ears; pin-on or quick-coupler connection.
Working clearance — check bucket width, capacity and clearance throughout the operating movement.

Using a quick coupler? Include its make, model and interface drawing. Confirm dimensions against the actual machine and attachment drawing.

Product questions

Trapezoidal ditch bucket questions

Is a trapezoidal bucket the same as a V bucket?

No. A trapezoidal profile has a defined base, while a triangular V profile comes to a point or a very narrow bottom.

Which dimensions should I send?

Send the top width, base width, channel depth, desired side slope and excavator mounting information.

How do I choose the working width or capacity?

Match the required width or capacity to the work area, material and excavator limits. Check attachment weight and operating clearance alongside the dimensions.

Which mounting information should accompany an enquiry?

Include the machine make and model, both pin diameters, pin centre distance and clear inside mounting width, or the specified quick-coupler interface drawing.
