Narrow shell
A narrower profile forms trenches without using the full width of a general digging bucket.
← All excavator bucketsJY-NT06 · Excavator attachment
Narrow trenching bucket
A narrow bucket for digging utility, cable and drainage trenches. Choose the width, profile and edge arrangement around the required trench and the excavator's reach and mounting.
Utilities & drainage- Working purpose
- Narrow trench excavation
- Material
- Soil and trench excavation material
- Configuration
- Width, mounting and edge options
Product & applications
About the narrow trenching bucket
A narrow bucket for digging utility, cable and drainage trenches. Choose the width, profile and edge arrangement around the required trench and the excavator's reach and mounting.
Features & benefits
Ground-engaging cutting edge
The cutting edge and teeth engage soil, sand and clay during trench excavation.
Purpose-matched width
Different widths and profiles accommodate the required trench shape.
Typical applications

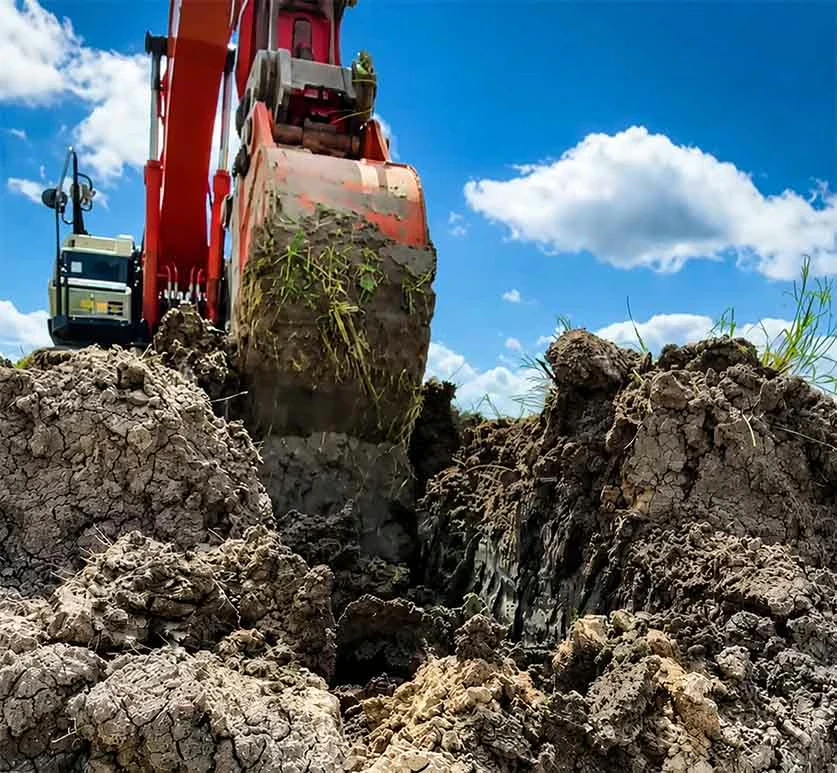

- Utility trenchesExcavate narrow trenches for pipes and cables with a bucket width matched to the required channel.
- Drainage channelsDig channels and ditches in soil, sand, clay and other light-to-medium material.
- Confined earthworkUse the narrow profile where a wider digging bucket would remove unnecessary material. This is an excavation bucket, not a rock-crushing tool.
Dimensions & specifications
Product Specifications
Compare the specification rows and include your required model or dimensions in the product enquiry below.
Scroll the table horizontally to view every specification →
| Model | Excavator weight | Width (mm) | Attachment weight |
|---|---|---|---|
| JY-NT06-300 | 6-8 tons | 300 | 152kg |
Installation requirements
Confirm this bucket fits your excavator
Send your excavator make, model and operating weight, together with clear photos or a drawing of the mounting interface.
- D1 / D2
- Both pin diameters
- C
- Pin centre-to-centre distance
- W
- Clear inside mounting width
Machine identification — excavator make, model and operating weight.
Pin dimensions — measure both pin diameters and the centre-to-centre distance in millimetres.
Mounting interface — inside width between mounting ears; pin-on or quick-coupler connection.
Working clearance — check bucket width, capacity and clearance throughout the operating movement.
Using a quick coupler? Include its make, model and interface drawing. Confirm dimensions against the actual machine and attachment drawing.
Product questions
Narrow trenching bucket questions
Is a trenching bucket always a deep-dig bucket?
No. Width, depth and shell profile are separate choices. Describe both the trench width and the required excavation depth.
Can I use it to create a V-shaped ditch?
A narrow trenching bucket is not the same as a V-shaped ditch bucket. The shape must be specified for the intended channel.
How do I choose the working width or capacity?
Match the required width or capacity to the work area, material and excavator limits. Check attachment weight and operating clearance alongside the dimensions.
Which mounting information should accompany an enquiry?
Include the machine make and model, both pin diameters, pin centre distance and clear inside mounting width, or the specified quick-coupler interface drawing.
