Bucket grapple manufacturer product reference
Tractor Loaders & Handling ToolsAgricultural implement

Bucket grapple

A Euro-mounted silage grapple bucket combining a material-containing bucket with a hydraulic upper grab.

Product family
Tractor Loaders & Handling Tools
Models
4 configurations
Request a QuoteChat on WhatsApp
Product & applications

About the bucket grapple

A Euro-mounted silage grapple bucket combining a material-containing bucket with a hydraulic upper grab.

Features & benefits

01

Bucket-and-grab structure

The bucket supports material while the upper grab closes over the load.

02

Large opening range

The listed grab opening allows access to suitable bulky silage loads.

03

Four width variants

The available configurations include separate working widths, volumes and attachment weights.

Typical applications

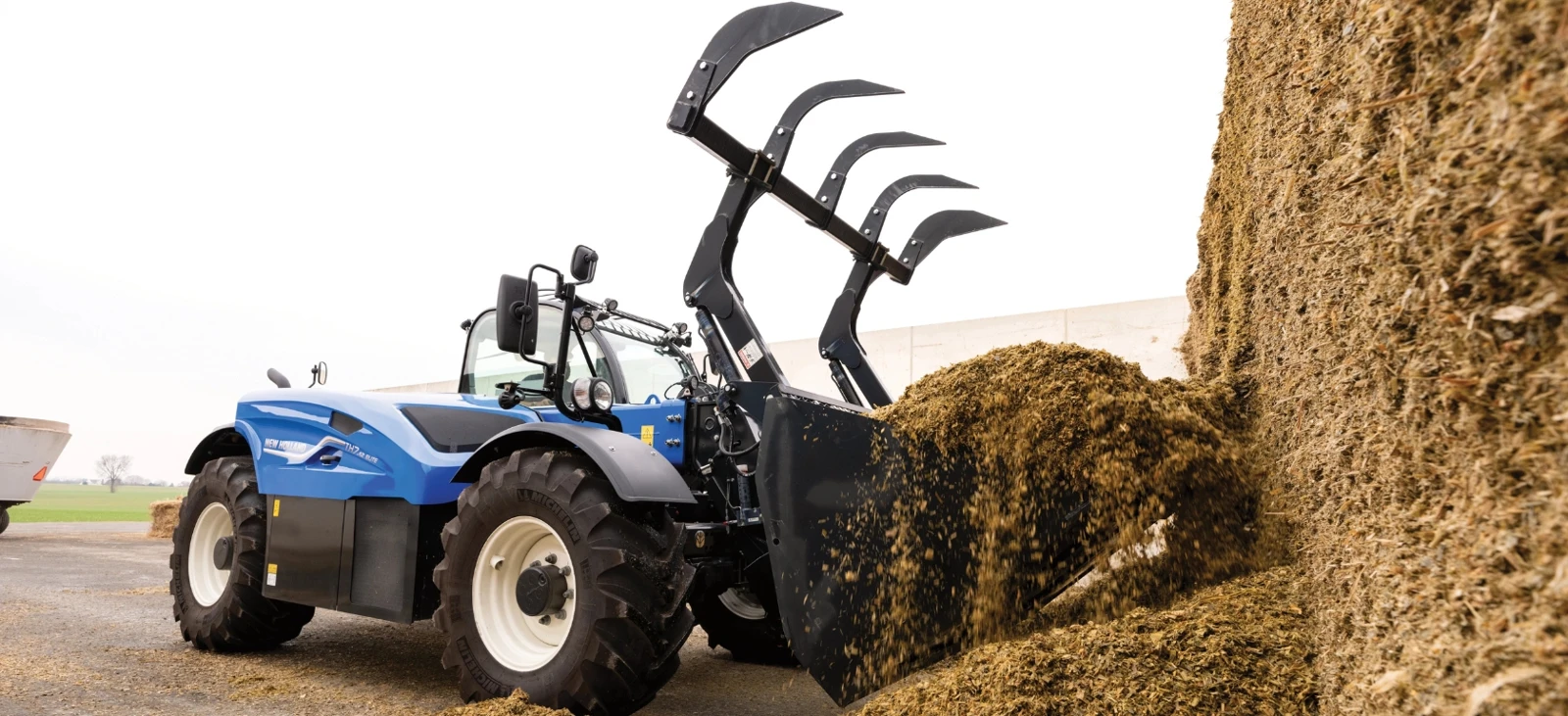

Silage handling with a bucket grapple
Silage handling with a bucket grapple
  • Silage loadingPicking up and containing suitable loose silage.
  • Bulk farm-material handlingMoving appropriate agricultural material with the bucket and upper grab.
Technical specifications

Models, dimensions and working requirements

Type

Width(W)/mm

Depth(D)/mm

Opening Range/mm

Volume/m³

Bracket Type

Weight/kg
JY-T-PGBXL2440(96IN)-EURO

2440

1160

0-2130

2.45

EURO

1336
JY-T-PGBXL2620(103IN)-EURO

2620

1160

0-2130

2.65

EURO

1380
JY-T-PGBXL2820(111IN)-EURO

2820

1160

0-2130

2.85

EURO

1425
JY-T-PGBXL2950(116IN)-EURO

2950

1160

0-2130

3.00

EURO

1458
Installation requirements

Confirm the tool fits your loader or tractor

Before ordering, send the machine identification and the connection, power and working information relevant to this product.

  1. Loader identification

    Provide loader make and model, attachment interface and the lifting chart for the intended working position.

  2. Attachment connection

    Match the actual Euro interface; compare SMS separately where a second mounting version is listed.

  3. Load and lifting geometry

    Include the load mass and dimensions, load centre, attachment weight and required lift height.

  4. Hydraulic gripping circuit

    Confirm the listed pressure and flow, hose connections and controls for the hydraulic grab.

Product questions

Bucket grapple questions

How does it differ from a silage fork grab?

A grapple bucket has a material-containing bucket body. A fork grab uses lower tines, allowing finer material to fall through the open structure.

What load information is needed to choose a loader attachment?

Include the load mass and dimensions, load centre, attachment weight and required lift height.

What should I check before installation?

Provide loader make and model, attachment interface and the lifting chart for the intended working position. Match the actual Euro interface; compare SMS separately where a second mounting version is listed.
