Side-type hydraulic breaker
An open-frame hydraulic breaker with a side-mounted bracket for breaking rock and concrete. Check the mounting geometry and hydraulic requirements for your excavator.
- Housing / bracket
- Side-mounted open bracket
- Primary work
- Rock breaking and demolition
- Model range
- 21 configurations
Product & applications
About the side-type hydraulic breaker
An open-frame hydraulic breaker with a side-mounted bracket for breaking rock and concrete. Check the mounting geometry and hydraulic requirements for your excavator.
Features & benefits
Piston and cylinder assembly
The extended piston and heat-treated cylinder deliver hydraulic hammer action to the working tool.
Guided and sealed mechanism
The seal arrangement guides the moving components and keeps dust away from the lubricated mechanism.
Typical applications
- Wall and structure demolitionPosition the chisel against suitable concrete sections where side-bracket access is useful.

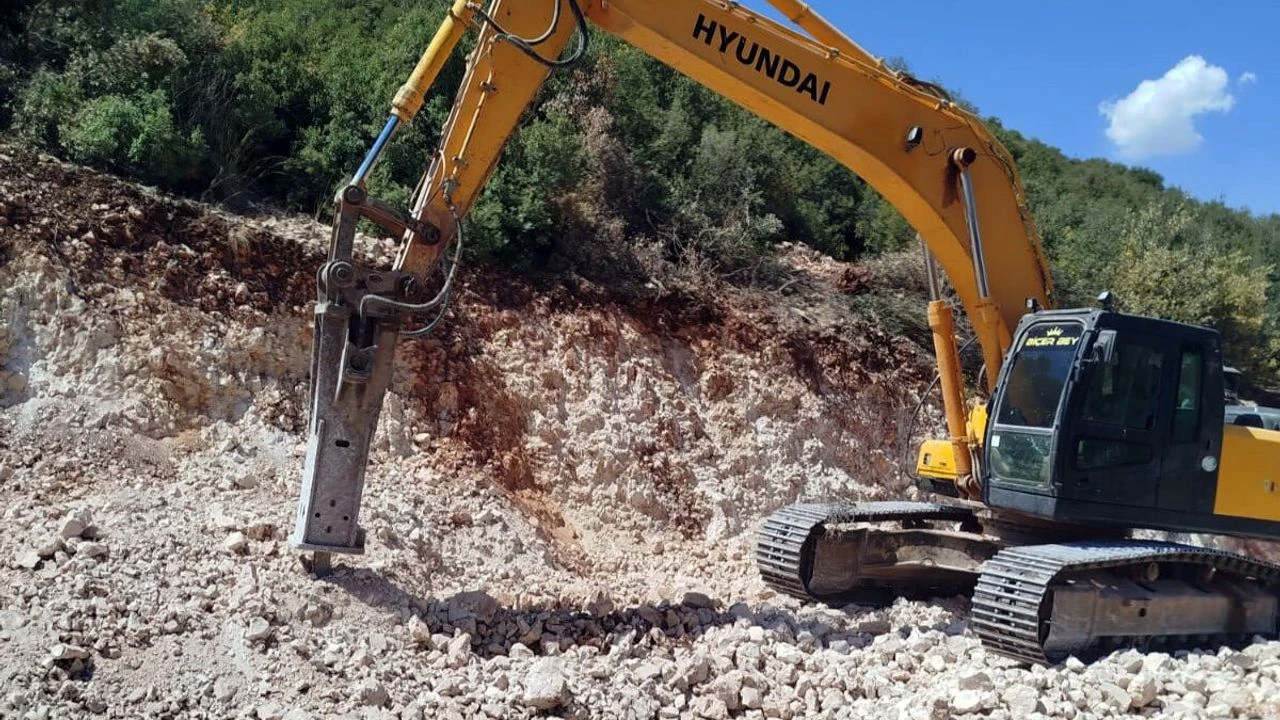

- Rock breakingBreak rock using a working tool selected for the material and operating method.
- Bridge and confined-access workUse the selected bracket geometry to reach accessible breaking points within the excavator working range.
Match the breaker to your excavator.
Compare machine weight, hydraulic flow and pressure together. Hammer weight differs between side, top and box configurations.
Pressure unit: kgf/cm². This table retains its original numerical values. Pressure is not shown in bar.
| Model | Chisel diametermm | Excavator operating weightt | Hammer weightkg | Operating pressurekgf/cm² | Hydraulic oil flowL/min | Blow frequencybpm | Hose diameterinch |
|---|---|---|---|---|---|---|---|
| JY-S05 | 35 | 0.5-1 | 62 | 90-120 | 15-25 | 800-1450 | 1/2 |
| JY-S10 | 40 | 0.8-2.5 | 80 | 90-120 | 15-25 | 800-1450 | 1/2 |
| JY-S20 | 45 | 1.2-3.0 | 108 | 90-120 | 20-30 | 700-1200 | 1/2 |
| JY-S30 | 53 | 2.5-4.5 | 138 | 90-120 | 25-50 | 600-1100 | 1/2 |
| JY-S35 | 60 | 2–5 | 209 | 90-120 | 25-50 | 600-1100 | 1/2 |
| JY-S40 | 68 | 4–7 | 238 | 110-140 | 40-70 | 500-900 | 1/2 |
| JY-S43 | 75 | 6–9 | 334 | 120-150 | 50-90 | 400-800 | 1/2 |
| JY-S45 | 85 | 7–14 | 537 | 130-160 | 60-100 | 400-800 | 3/4 |
| JY-S50 | 100 | 10–15 | 765 | 150-170 | 80-110 | 350-700 | 3/4 |
| JY-S60 | 125 | 15-18 | 1,289 | 150-170 | 80-110 | 350-700 | 3/4 |
| JY-S70 | 135 | 17-25 | 1,318 | 160-180 | 130-150 | 400-800 | 1 |
| JY-S81 | 140 | 18-26 | 1,418 | 160-180 | 120-180 | 350-500 | 1 |
| JY-S81A | 140 | 18-26 | 1,509 | 160-210 | 120-180 | 400-550 | 1 |
| JY-S100 | 150 | 26-30 | 1,925 | 160-180 | 150-210 | 350-450 | 1 |
| JY-S121 | 155 | 28-32 | 2,102 | 160-180 | 180-240 | 300-450 | 1¼ |
| JY-S131 | 165 | 30-35 | 2,526 | 160-180 | 200-260 | 250-400 | 1¼ |
| JY-S140 | 165 | 32-38 | 2,748 | 160-180 | 210-270 | 250-380 | 1¼ |
| JY-S151 | 175 | 37-45 | 3,190 | 160-190 | 210-290 | 200-350 | 1¼ |
| JY-S185 | 185 | 45-50 | 4,882 | 205-245 | 220-270 | 180-200 | 1¼ |
| JY-S195 | 190 | 48-55 | 4,990 | 225-265 | 270-330 | 180-200 | 1¼ |
| JY-S210 | 210 | 60-75 | 6,190 | 245-285 | 290-350 | 150-180 | 1¼ |
