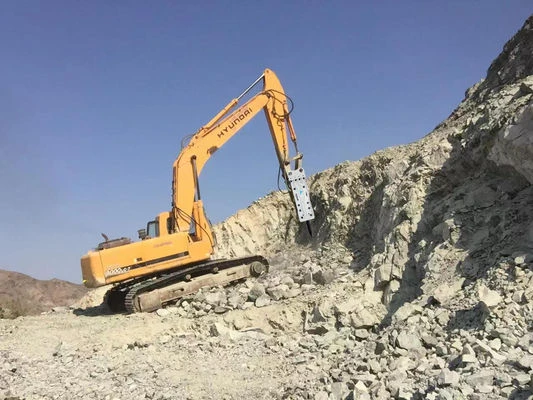

Upright mounting bracket
The upper mounting arrangement positions the hammer in line with vertical impact work.
← All hydraulic breaker typesJY-T series · Excavator attachment
Top-type hydraulic breaker
An open-frame hydraulic breaker with an upper mounting bracket for rock breaking, concrete removal and vertical work. Match the breaker to the carrier and hydraulic circuit.
- Housing / bracket
- Upper mounting bracket
- Primary work
- Vertical breaking and trench work
- Model range
- 21 configurations
Product & applications
About the top-type hydraulic breaker
An open-frame hydraulic breaker with an upper mounting bracket for rock breaking, concrete removal and vertical work. Match the breaker to the carrier and hydraulic circuit.
Features & benefits
Integrated bracket structure
The fixed top bracket connects the hammer body to the excavator linkage for controlled positioning.
Hydraulic impact mechanism
The hammer transfers repeated piston impacts through the chisel into rock or concrete.
Typical applications
- Vertical breakingWork downward on accessible rock or concrete with the upright bracket.
- Trench operationsPosition the hammer for breaking in accessible trenches and foundation excavations.
- Concrete removalBreak suitable concrete sections during dismantling and site preparation.
Match the breaker to your excavator.
Compare machine weight, hydraulic flow and pressure together. Hammer weight differs between side, top and box configurations.
Pressure unit: kgf/cm². This table retains its original numerical values. Pressure is not shown in bar.
| Model | Chisel diametermm | Excavator operating weightt | Hammer weightkg | Operating pressurekgf/cm² | Hydraulic oil flowL/min | Blow frequencybpm | Hose diameterinch |
|---|---|---|---|---|---|---|---|
| JY-T05 | 35 | 0.5-1 | 75 | 90-120 | 15-25 | 800-1450 | 1/2 |
| JY-T10 | 40 | 0.8-2.5 | 86 | 90-120 | 15-25 | 800-1450 | 1/2 |
| JY-T20 | 45 | 1.2-3.0 | 108 | 90-120 | 20-30 | 700-1200 | 1/2 |
| JY-T30 | 53 | 2.5-4.5 | 176 | 90-120 | 25-50 | 600-1100 | 1/2 |
| JY-T35 | 60 | 2–5 | 232 | 90-120 | 25-50 | 600-1100 | 1/2 |
| JY-T40 | 68 | 4–7 | 287 | 110-140 | 40-70 | 500-900 | 1/2 |
| JY-T43 | 75 | 6–9 | 375 | 120-150 | 50-90 | 400-800 | 1/2 |
| JY-T45 | 85 | 7–14 | 673 | 130-160 | 60-100 | 400-800 | 3/4 |
| JY-T50 | 100 | 10–15 | 922 | 150-170 | 80-110 | 350-700 | 3/4 |
| JY-T60 | 125 | 15-18 | 1,666 | 150-170 | 80-110 | 350-700 | 3/4 |
| JY-T70 | 135 | 17-25 | 1,798 | 160-180 | 130-150 | 400-800 | 1 |
| JY-T81 | 140 | 18-26 | 1,976 | 160-180 | 120-180 | 350-500 | 1 |
| JY-T81A | 140 | 18-26 | 2,065 | 160-210 | 120-180 | 400-550 | 1 |
| JY-T100 | 150 | 26-30 | 2,133 | 160-180 | 150-210 | 350-450 | 1 |
| JY-T121 | 155 | 28-32 | 2,613 | 160-180 | 180-240 | 300-450 | 1¼ |
| JY-T131 | 165 | 30-35 | 2,783 | 160-180 | 200-260 | 250-400 | 1¼ |
| JY-T140 | 165 | 32-38 | 3,043 | 160-180 | 210-270 | 250-380 | 1¼ |
| JY-T151 | 175 | 37-45 | 3,643 | 160-190 | 210-290 | 200-350 | 1¼ |
| JY-T185 | 185 | 45-50 | 5,443 | 205-245 | 220-270 | 180-200 | 1¼ |
| JY-T195 | 190 | 48-55 | 6,043 | 225-265 | 270-330 | 180-200 | 1¼ |
| JY-T210 | 210 | 60-75 | 6,593 | 245-285 | 290-350 | 150-180 | 1¼ |
On smaller screens, swipe the table sideways to see every specification.
Installation requirements
Confirm the attachment fits your excavator
Before ordering, send the machine identification and the connection, power and working information relevant to this product.
- D1 / D2
- Both pin diameters
- C
- Pin centre distance
- W
- Clear mounting width
Excavator weight class
Excavator model, operating weight and mounting connection.
Oil supply
Available flow, pressure, return pressure and relief settings.
Working tool
Tool diameter and point or chisel suitable for the material.
Operating conditions
Material, access, duty cycle and lubrication requirements.
Product questions
Top-type hydraulic breaker questions
Is excavator weight enough to select a breaker?
No. Compare oil flow, pressure, return requirements, mounting and attachment mass with the selected model.
What should I compare when choosing a top-type breaker?
Compare the bracket or housing dimensions, mounting connection and available working clearance for the intended breaking task.
How is the working tool selected?
Choose the specified point or chisel for the material and work. Rock breaking and concrete demolition can require different working tools.
Does it need a dedicated hydraulic check?
Yes. Confirm the hammer circuit, pressure, flow and return arrangement against the installation instructions. Do not infer suitability from pin fit alone.
